3101.0045 - Schurter
Manufacturer:
Schurter
ManyChip's Part#:
MC2051878
Category:
Fuse Holder
Package:
-
Datasheet:
Datasheet 3D Model
Description:

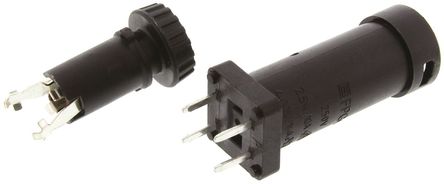

Schurter 10A Manual Cap PCB Mount Fuse Holder for 5 x 20mm Cartridge Fuse, 250V ac
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Fuse holders for 5 × 20 mm fuses according to IEC 60127-6, UL 4248-1/UL 512. All UL recognized, CSA certified and VDE approved. Panel-mount styles have solder/quick-disconnect terminals. Various mounting styles for panel or PCB. IP67 models are watertight.

Show

3101.0045 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	-
Contact Plating	Tin
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	16 A
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Power Dissipation	2.50 W
Contact Resistance	5 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	400 VAC
	Show
Size-Length	42.8 mm
Size-Width	12.5 mm
Size-Height	32.6 mm
Color	Black
Contact Material	Copper Alloy
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536698000
ECCN Code	EAR99
