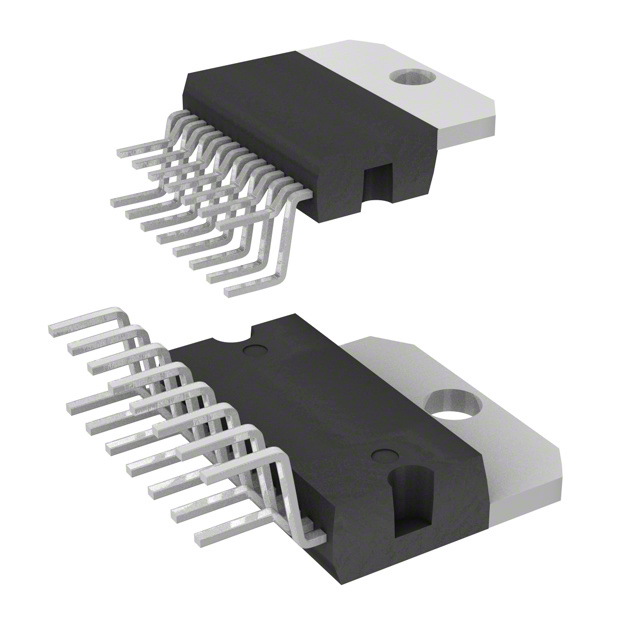

Image is for your reference only,please check specifications for details
- TDA7495 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC81736955
-
Category:Audio Amplifier IC
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 2CH Stereo 11W Class-AB 15Pin(15+Tab) MULTIWATT V Tube
-
Stock Locations:
-
Availability:281 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The TDA7495 is a stereo 11+11W class AB power amplifier assembled in the @ Multiwatt 15 package, specially designed for high quality sound, TV applications.
- Features of the TDA7495 include linear volume control, Stand-by and mute functions.
- 11+11W OUTPUT POWER
- RL = 8Ω @THD = 10% VCC = 28V
- ST-BY AND MUTE FUNCTIONS
- LOW TURN-ON TURN-OFF POP NOISE
- LINEAR VOLUME CONTROL DC COUPLED WITH POWER OP. AMP.
- NO BOUCHEROT CELL
- NO ST-BY RC INPUT NETWORK
- SINGLE SUPPLY RANGING UP TO 35V
- SHORT CIRCUIT PROTECTION
- THERMAL OVERLOAD PROTECTION
- INTERNALLY FIXED GAIN
- SOFT CLIPPING
- VARIABLE OUTPUT AFTER VOLUME CONTROL CIRCUIT
- MULTIWATT 15 PACKAGE
TDA7495 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 15 Pin |
| Case/Package | Multiwatt-15 |
| Supply Voltage (DC) | 35.0 V |
| Input Voltage (DC) | 8.00 V |
| Number of Channels | 2 Channel |
| Power Dissipation | 20000 mW |
| Output Power | 11 W |
| Gain | 30 dB |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 20000 mW |
| Supply Voltage | 11V ~ 35V |
| Show | |
| Size-Length | 19.6 mm |
| Size-Width | 5 mm |
| Size-Height | 10.7 mm |
| Operating Temperature | -20℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
