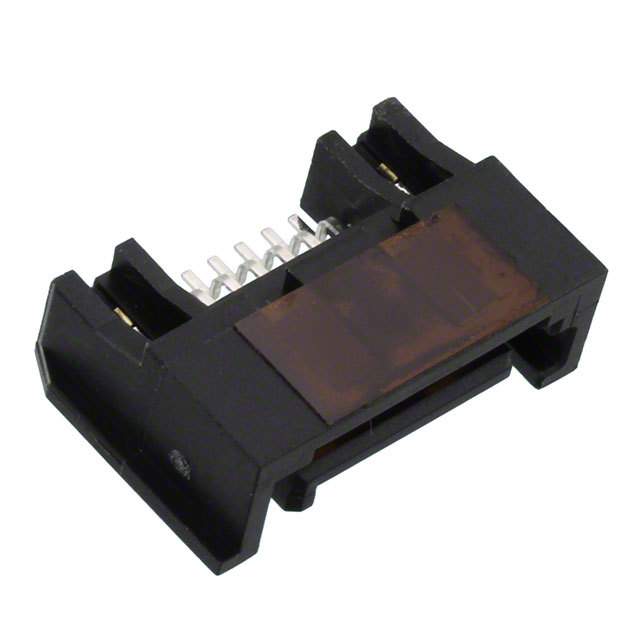

Image is for your reference only,please check specifications for details
Updated at 02/06/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
470804005 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | - |
| Pin Pitch | 1.27 mm |
| Number of Contacts | 7 Contact |
| Gender | Male |
| Contact Plating | Gold |
| Voltage Rating (DC) | 15.0 V |
| Current Rating | 1.50 A |
| Number of Rows | 1 Row |
| Glow Wire Compliant | Non-Compliant |
| Halogen Free Status | Not Low Halogen |
| Orientation | Right Angle |
| Number of Circuits | 7 Circuit |
| Number of Positions | 7 Position |
| Current Rating (Max) | 1.5A/触头 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -35 ℃ |
| Show | |
| Size-Height | 5.85 mm |
| Contact Material | Copper Alloy |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
