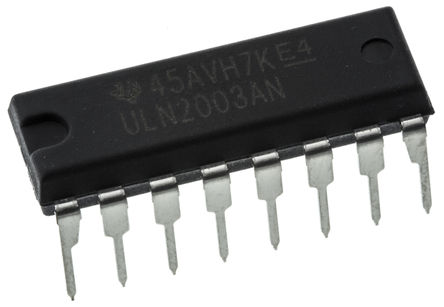

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ULN2003AN series from Texas Instruments is through hole, high voltage and high current darlington transistor arrays in PDIP package. Each containing seven NPN darlington pairs that feature high voltage common emitter and open collector outputs with common cathode clamp diodes for switching inductive loads. The collector current rating of a single darlington pair is 500mA and darlington pairs can be paralleled for higher current capability. The ULN2003A devices have a 2.7Kohm series base resistor for each darlington pair for operation directly with TTL or 5V CMOS devices. Typical applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers and logic buffers.
High voltage outputs of 50V
Inputs compatible with various types of logic
On state input voltage of 3V at 300mA collector current
Collector to emitter saturation voltage of 1.2V at 350mA collector current
Operating temperature range -20°C to 70°C
Collector current (Ic) of 500mA (single output)

Show

ULN2003AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Voltage Rating (DC)	50.0 V
Current Rating	500 mA
Number of Outputs	7 Output
Output Voltage	50 V
Output Current	0.6 A
Number of Channels	7 Channel
Number of Positions	16 Position
Forward Voltage	1.70 V
Input Current	930 µA
Polarity	NPN
Power Dissipation	25 W
Input Capacitance	15.0 pF
Breakdown Voltage (Collector to Emitter)	50 V
Drivers Per Package	7
Continuous Collector Current	0.5A
Input Voltage (Max)	5 V
Output Voltage (Max)	50 V
Output Current (Max)	500 mA
DC Current Gain (hFE)	600
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Input Voltage	30 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
