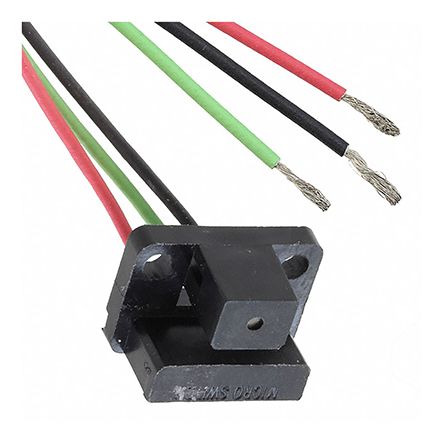

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 4AV Series sensors operate by a low-cost, easy-to-fabricate ferrous vane. They can be used as limit switches by operating with a single large vane; as tachometer sensors by using toothed wheels; or as synchronizing elements by using cams or sectors.
- **Features:**
- * Hall-Effect Technology
- * Magnet and Sensor Incorporated in Same Package
- * No Minimum Speed of Operation
- * On and Off Times Dependent on Vane Dimension
- **Specifications:**
- * Leadwires: 24 Gauge
- * Vane Gap: 0.100"
- * Operating Temperature: –40° to +257°F
4AV19F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | Slotted Body |
| Output Current | 40 mA |
| Output Current (Max) | 40 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5V ~ 26.5V |
| Show | |
| Size-Length | 19.1 mm |
| Size-Width | 13.2 mm |
| Size-Height | 10.9 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8543704000 |
| ECCN Code | EAR99 |
