Description

“ARCING”, “SPARKING”, and “TRANSIENTS” often cause premature failures in relays, switches, thyristors, TRIACs, contactors, and related products. QUENCHARC® extends operating life when properly selected and applied.* Construction:** Metallized polyester in series with a carbon composition resistor. **Case:** Coated with a flame retardant epoxy. **Dielectric Withstand:** Units shall withstand a DC potential of 1.6 times the DC voltage rating. Testing conducted at +25°C. **Test Method and Performance. DC Life Test:** Units shall withstand a test potential of 125% of the rated voltage for a period of 500 hours at 85°C. A failure shall consist of capacitance change >5% or a DF greater than original limits. **Long Term Stability:** The capacitance shall not change more than 2% when stored at ambient temperature and humidity for a period of two years or less.
Features:
* Capacitance Range: 0.1, 0.5, 1.0 μF
* Tolerance: ±20%
* Voltage Range: 200 VDC (125 VAC) and 600 VDC (250 VAC), 60 Hz
* Operating Temperature: –55°C to +85°C at Full Rated Voltage
* Resistor Values: 22, 47, 100, 150, 220 Ohms
* Resistance Tolerance: ±10%
* Noise and Arc Suppression
* RC Snubber Network
* Relay Contact Protection
* EMI/RFI Reduction
* Noise Reduction on Controllers/Drivers
* Type QRL: UL/CSA Version

Show

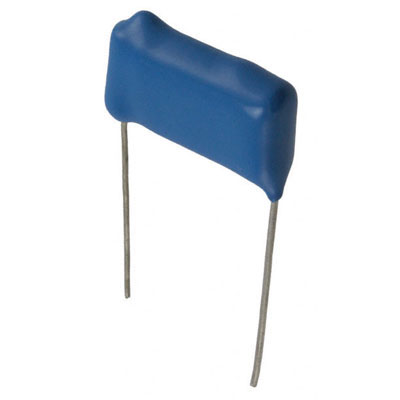

504M02QA100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Voltage Rating (DC)	200 V
Voltage Rating (AC)	125 V
Capacitance	0.5 µF
Capacitance Tolerance	±20 %
Power Rating	0.5 W
Number of Channels	1 Channel
Part Family	Q_QRL
Resistance	100 Ω
Resistance Tolerance	±10 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	200 V
	Show
Size-Length	27.4 mm
Size-Width	9.4 mm
Size-Height	16.3 mm
Lead Length	0.850 in
Size-Thickness	0.370 in
Dielectric Material	Polyester
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
