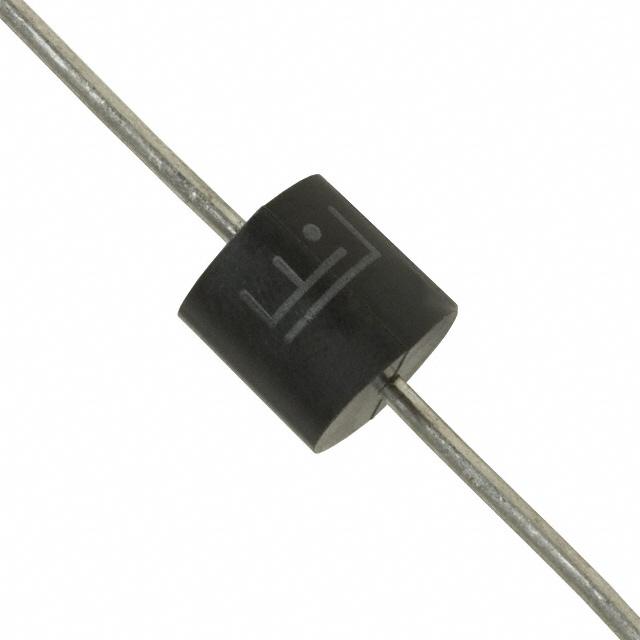

Image is for your reference only,please check specifications for details
- 5KP28A - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC61127720
-
Category:TVS Diode
-
Package:P-600
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE 5KP28A TVS Diode, 5KP Series, Unidirectional, 28V, 45.4V, P600, 2Pins
-
Stock Locations:
-
Availability:4,569 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 22.7
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Littelfuse"s 5KP28A TVS diode is designed to protect electronic components and circuits from electrical overstress from overvoltage and electrostatic discharge. Its maximum leakage current is 2 μA. Its peak pulse power dissipation is 5000 W. This device"s maximum clamping voltage is 45.4 V and minimum breakdown voltage is 31.1 V. Its test current is 5 mA. This TVS diode has a minimum operating temperature of -55 °C and a maximum of 175 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery.
5KP28A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | P-600 |
| Voltage Rating (DC) | 28.0 V |
| Power Rating | 5.00 kW |
| Clamping Voltage | 45.4 V |
| Test Current | 5 mA |
| Max Breakdown Voltage | 34.4 V |
| Peak Pulse Power | 5000 W |
| Min Breakdown Voltage | 31.1 V |
| Reverse Breakdown Voltage | 31.1 V |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | -55℃ ~ 175℃ |
| Show | |
| Size-Length | 9.1 mm |
| Size-Diameter | 9.10 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
