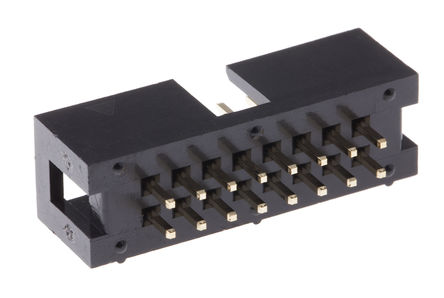

Image is for your reference only,please check specifications for details

61201621621 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC39145437
Category:
Wire to Board Connector
Datasheet:
Datasheet 3D Model
Description:
WURTH ELEKTRONIK 61201621621 Wire-To-Board Connector, 2.54mm, 16Contacts, Header, WR-BHD Series, Through Hole, 2Rows
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 61201621621 is a 16-way 2-row Male Box Header with gold-plated copper alloy contacts, 2.54mm pitch and PBT insulator. Black colour. JEDEC lead-free wave soldering process.
Stamped contacts
UL94V-0 Flammability rating
3A Rated current
250VAC Working voltage
>1000MR Isolation resistance
20mR Maximum contact resistance

Show

61201621621 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	2.54 mm
Number of Contacts	16 Contact
Gender	Male
Contact Plating	Gold
Current Rating	3 A
Insulation Resistance	1 GΩ
Number of Rows	2 Row
Flammability Rating	UL 94 V-0
Number of Positions	16 Position
Contact Resistance	20.0 mΩ
Voltage Rating	250 VAC
	Show
Lead Length	1 m
Cable Length	3.2 ft
Color	Black
Contact Material	Copper
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
