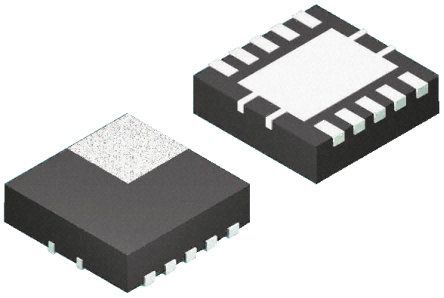

Image is for your reference only,please check specifications for details
- BQ27210DRKR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC3179392
-
Category:Battery Management IC
-
Package:VSON-10
-
Datasheet:Datasheet 3D Model
-
Description:TEXAS INSTRUMENTS BQ27210DRKR Li-Ion, Li-Pol Battery Fuel Gauge IC, 2.6V to 4.5V supply, Two Wire/I2C/Serial interface, SON-10
-
Stock Locations:
-
Availability:10,886 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.09
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BQ27210DRKR is a highly accurate stand-alone single-cell Li-ion and Li-polymer Battery Capacity Monitoring and Reporting Device targeted at space-limited, portable applications. The IC monitors a voltage drop across a small current sense resistor connected in series with the battery to determine charge and discharge activity of the battery. Compensations for battery age, temperature, self-discharge and discharge rate are applied to the capacity measurements to provide available time-to-empty information across a wide range of operating conditions. Battery capacity is automatically recalibrated, or learned, in the course of a discharge cycle from full to empty. Internal registers include current, capacity, time-to-empty, state-of-charge, cell temperature and voltage, status and more. The bqJUNIOR can operate directly from single-cell Li-ion and Li-polymer batteries and communicates to the system over a HDQ one-wire or I²C serial interface.
- Reports accurate Time-to-Empty at both measured and host-requested load value
- Reports available capacity compensated for discharge rate, temperature and age
- End-of-discharge voltage compensated for discharge rate and temperature
- Automatic capacity reduction with age
- Reports temperature, voltage and current
- High accuracy charge and discharge current integration with automatic offset calibration
- Requires no user calibration
- Programmable input/output port
- Internal user EEPROM configuration memory
- Uploadable coefficients allows host-side use with multiple pack characteristics
- Stable oscillator without external components
- Green product and no Sb/Br
BQ27210DRKR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VSON-10 |
| Supply Voltage (DC) | 2.60V (min) |
| Number of Positions | 10 Position |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 2.6V ~ 4.5V |
| Supply Voltage (Max) | 4.5 V |
| Supply Voltage (Min) | 2.6 V |
| Show | |
| Size-Length | 4.15 mm |
| Size-Width | 3.15 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -20℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
