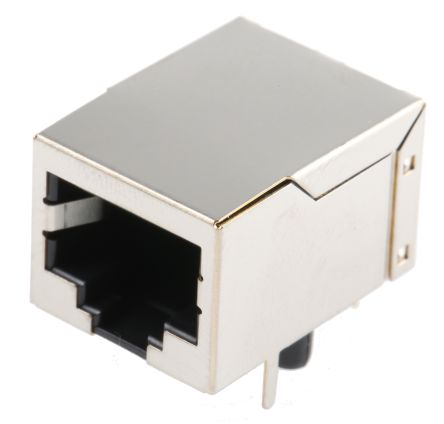

Image is for your reference only,please check specifications for details
- 61500814221 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC9626475
-
Category:Modular, Plugs, Jack
-
Datasheet:Datasheet 3D Model
-
Description:Conn Modular Jack F 8POS 2.54mm Solder RA Thru-Hole 8 Terminal 1Port Tray Cat 5
-
Stock Locations:
-
Availability:447 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.37
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 61500814221 is a CAT-5 8P8C/RJ45 horizontal shielded Modular Jack with PBT insulator, gold-plated copper alloy contacts and nickel-plated bronze housing.
- 500-cycle Durability (mating) quality class
- 1.5A Rated current
- 120VAC Working voltage
- >500MR Isolation resistance
- 1000VAC/minute Dielectric withstanding voltage
- 20mR Maximum contact resistance
- Stamped contact type
61500814221 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Contacts | 8 Contact |
| Gender | Male |
| Contact Plating | Gold |
| Current Rating | 1.50 A |
| Insulation Resistance | 500 MΩ |
| Number of Rows | 1 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 8 Position |
| Contact Resistance | 20.0 mΩ |
| Number of Mating Cycles | 500 Cycle |
| Show | |
| Size-Length | 13.65 mm |
| Size-Width | 15.88 mm |
| Color | Black |
| Contact Material | Copper Alloy |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
