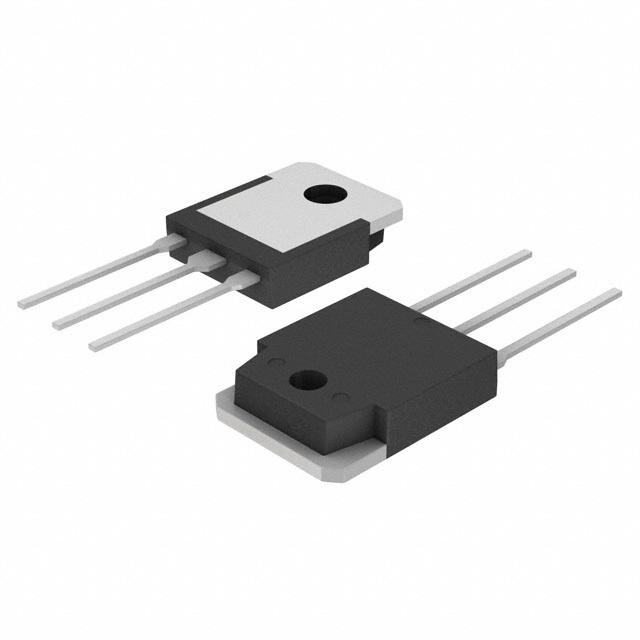

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2SD1047 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Frequency	20 MHz
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	100 W
Gain Bandwidth Product	20 MHz
Breakdown Voltage (Collector to Emitter)	140 V
hFE Min	60 @1A, 5V
Input Power (Max)	100 W
DC Current Gain (hFE)	50
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	100000 mW
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
