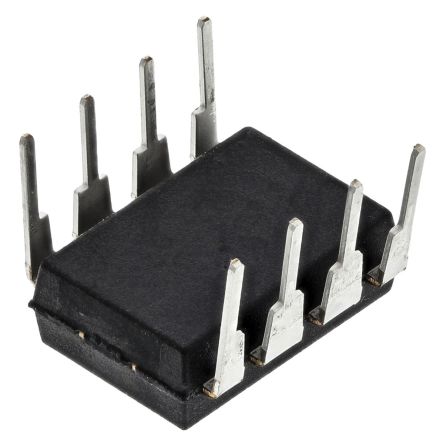

6N139M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC15158144
Category:
Optocoupler, Optoisolator
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR 6N139M Optocoupler, Darlington Output, 1Channel, DIP, 8Pins, 20mA, 5kV, 500%
Stock Locations:
Availability:
1,827 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 6N139M is a 1-channel 8-pin High Gain Optocoupler consist of an AlGaAs LED optically coupled to a high gain split Darlington photodetector. The split Darlington configuration separating the input photodiode and the first stage gain from the output transistor permits lower output saturation voltage and higher speed operation than possible with conventional Darlington phototransistor optocoupler. The combination of a very low input current of 0.5mA and a high current transfer ratio of 2000% makes this family particularly useful for input interface to MOS, CMOS, LSTTL and EIA RS232C, while output compatibility is ensured to CMOS as well as high fan-out TTL requirements. An internal noise shield provides exceptional common mode rejection of 10kV/µs. It is suitable for digital logic ground isolation, telephone ring detector and high common mode noise line receiver.
1414V Peak working insulation voltage
6000V Highest allowable over voltage
200mA Input current
300mW Output power

Show

6N139M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Number of Channels	1 Channel
Number of Positions	8 Position
Forward Voltage	1.3 V
Power Dissipation	0.1 W
Isolation Voltage	5000 Vrms
Forward Current	20 mA
Output Voltage (Max)	18 V
Input Current (Min)	1 A
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.75 V
Forward Current (Max)	20 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
	Show
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
