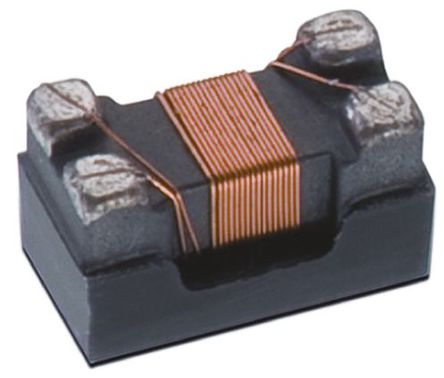

Image is for your reference only,please check specifications for details
- 744230900 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC3910263
-
Category:Inductor Choke
-
Package:0603
-
Datasheet:Datasheet 3D Model
-
Description:Сетевой фильтр SMD 0603, расстояние между контактами 0603 мм, 0.145Ом, 90Ом, 0.55А, Wuerth Elektronik WE-CNSW 744230900, 1 шт.
-
Stock Locations:
-
Availability:203 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.89
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 744230900 — это синфазный сетевой фильтр серии WE-CNSW на 550 мА/50 В с выводами фильтра для поверхностного монтажа (SMD). Он обеспечивает высокое подавление синфазных помех на высоких частотах, малое влияние на высокоскоростные сигналы благодаря симметрии обмоток. Этот фильтр используется для USB 2, FireWire/IEEE 1394, LVDS, высокоскоростных линий данных, источников синфазных помех, LAN.
- Диапазон рабочих температур от -40 до 125 °C
744230900 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | 0603 |
| Voltage Rating (DC) | 50 V |
| Current Rating | 550 mA |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | ≤145 mΩ |
| Current Rating (Max) | 550 mA |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 50 VDC |
| Resistance (DC Max) | 145 mΩ |
| Show | |
| Size-Length | 1.1 mm |
| Size-Width | 0.85 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
