Description

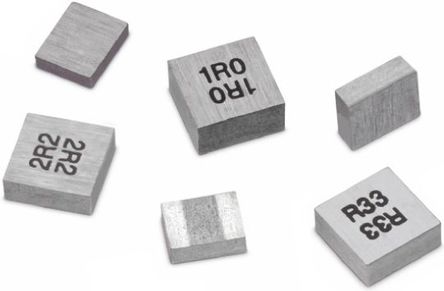

- The 74438335220 is a surface mount shielded Power Inductor with magnetic iron alloy core allows high rated currents. This WE-MAPI magnetically shielded compact design inductor features high current capability and handles high transient current spikes. And also features low acoustic noise and low leakage flux noise. This inductor supports 12MHz typical self-resonant frequency and is recommended that the temperature of the inductor does not exceed 125°C under worst case operating conditions.
- 3°C/s Maximum ramp-up rate
- 6°C/s Maximum ramp-down rate
- Cleaning agents that are used to clean application might damage or change the characteristics of the component, body, pins or termination.
74438335220 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | 1212 |
| Current Rating | 600 mA |
| Capacitance Tolerance | ±20 % |
| Inductance | 22 µH |
| Self Resonant Frequency | 12 MHz |
| Part Family | WE-MAPI |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤940 mΩ |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 1.04 Ω |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| REACH SVHC Compliance | No SVHC |
