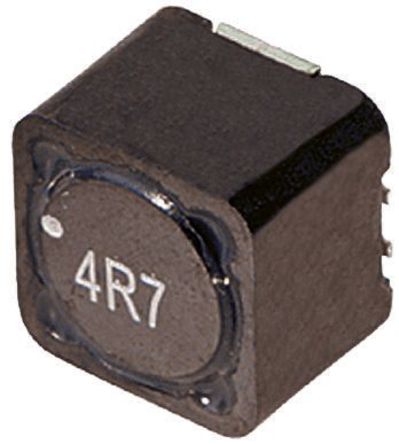

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Wurth Elektronik WE-PD series are magnetic shielded power inductors. The inductance value ranges from 0.47µH to 1500µH.
EIA 7332, 7345, 1030, 1050, 1245, 1260, 1280, 1210, 6033, 6050 case sizes available
Magnetic shielding results in low leakage field
High storage capacity
Low self losses
Highest possible current loading
Operating temperature range -40°C to 125°C
Suitable for reflow soldering process
Available in metal and plastic base

Show

7447709331 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	12mm x 12mm x 10mm
Current Rating	1.5 A
Capacitance Tolerance	±20 %
Inductance	330 µH
Self Resonant Frequency	2 MHz
Part Family	WE-PD
Resistance	363 mΩ
Resonant Frequency	2.00 MHz
Inductance Tolerance	±20 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤430 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.43 Ω
	Show
Size-Length	12 mm
Size-Width	12 mm
Size-Height	10 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
