74HCT4066D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC135095610
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
SOIC
Datasheet:
Datasheet 3D Model
Description:

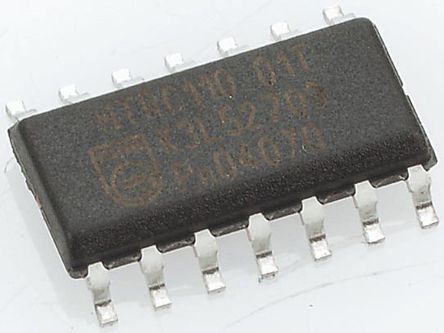

NXP 74HCT4066D Analogue Switch, SPST, 4Channels, 105Ω, 4.5V to 5.5V, SOIC, 14Pins
Stock Locations:
Availability:
847 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 18/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HCT4066D is a single-pole single-throw (SPST) quad TTL Analog Switch features two input/output terminals (nY and nZ) and an active HIGH enable input (nE). When nE is LOW, the analog switch is turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Low on-resistance
ESD Protection
Specified in compliance with JEDEC standard number 7A

Show

74HCT4066D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC
Supply Voltage (DC)	5.00 V
Number of Outputs	4 Output
Output Current	32.0 mA
Contacts Type	SPST
Number of Channels	4 Channel
Number of Positions	14 Position
Number of Bits	4 Bit
Polarity	Non-Inverting
Power Dissipation	0.5 W
Number of Gates	4 Gate
Bandwidth	200 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Supply Voltage	4.5V ~ 5.5V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.45 mm
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
