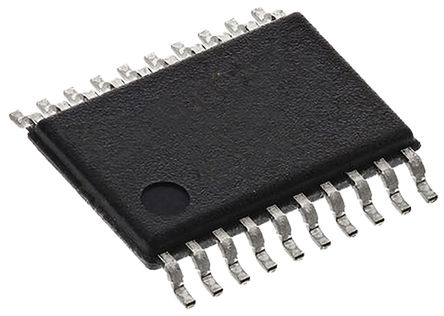

74LCX245MTC - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC11207046
Category:
Logic Controller, Logic IC
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
Low Voltage Bidirectional Transceiver with 5V Tolerant Inputs and Outputs, 20LD, TSSOP, JEDEC MO-153, 4.4MM WIDE, 1825/RAIL
Stock Locations:
Availability:
3,592 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.53

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74LCX245MTC is a low voltage non-inverting Bidirectional Transceiver with 3-state outputs and is intended for bus oriented applications. The device is designed for low voltage (2.5 and 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The T/R# input determines the direction of data flow through the device. The OE# input disables both the A and B ports by placing them in a high impedance state. The LCX245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Power down high impedance inputs and outputs
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500mA
5V Tolerant inputs and outputs
7ns Propagation delay (tpd), 10µA ICCQ maximum
±24mA Output drive
Supports live insertion/withdrawal

Show

74LCX245MTC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Supply Voltage (DC)	2.50 V
Number of Outputs	8 Output
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Quiescent Current	10 µA
Number of Inputs	10 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
