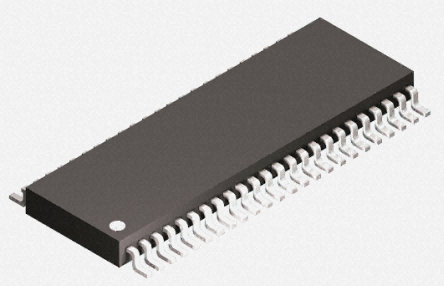

74VCX164245MTD - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC81750772
Category:
Logic Controller, Logic IC
Package:
TSSOP-48
Datasheet:
Datasheet 3D Model
Description:
Low Voltage 16Bit Dual Supply Translating Transceiver with 3-STATE Outputs, 48 LD,TSSOP,JEDEC MO-153, 6.1MM WIDE, 3800/RAIL
Stock Locations:
Availability:
1,735 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.05

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the 74VCX164245MTD level translator from Fairchild Semiconductor is for you. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product comes in rail packaging to keep individual parts separated and protected. This device has a typical operating supply voltage of 1.8/2.5|1.8/3.3|2.5/3.3 V. Its minimum operating supply voltage of 1.65/2.3 V, while its maximum is 2.7/3.6 V.

Show

74VCX164245MTD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	TSSOP-48
Supply Voltage (DC)	2.50 V, 3.30 V (max)
Output Current	24 mA
Number of Circuits	1 Circuit
Number of Channels	16 Channel
Number of Positions	48 Position
Number of Bits	16 Bit
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	12.5 mm
Size-Width	6.1 mm
Size-Height	0.9 mm
Weight	0.00673584714 kg
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
