Description

The 8609 series Connector offers a broad and a complete range of interconnection systems conforming to DIN 41612 and IEC 603-2 specifications. The DIN 41612 connector system is the most popular backplane interconnect systems due to the widespread standard adoption, easy availability and durability. The product design for board-to-board and I/O solutions involve two popular mating combination.
Modular system
Rear plug up variants in press-fit applications
Adequate spacing for routing PCB traces
Improve creepage distance, allow custom loading
Critical grounding option
Enhances the connector suitability and flexibility
Extended mating applications via shrouds on the rear side of the PCB

Show

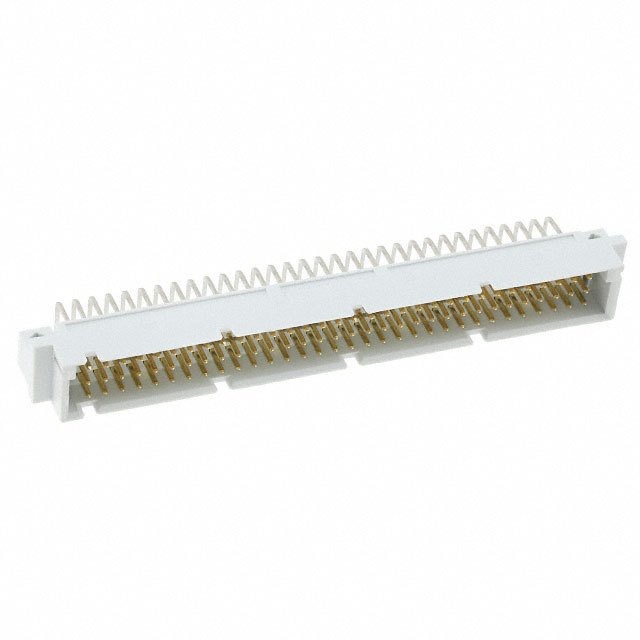

86093967113755ELF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	96 Contact
Gender	Male
Contact Plating	Gold
Current Rating	1.50 A
Insulation Resistance	1000000 MΩ
Number of Rows	3 Row
Number of Positions	96 Position
Number of Mating Cycles	400 Cycle
Current Rating (Max)	2A/触头
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Maximum Contact Resistance (Max)	20 mΩ
	Show
Size-Length	94 mm
Size-Height	11.1 mm
Housing Color	Gray
Contact Material	Copper Alloy
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
