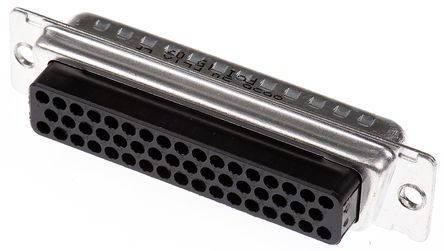

Image is for your reference only,please check specifications for details

865650PLTXLF - FCI Electronics
Manufacturer:
FCI Electronics
ManyChip's Part#:
MC70063307
Category:
D-Sub Backshell, D-Sub Hood
Datasheet:
Datasheet 3D Model
Description:
FCI 8656 Series 2.76mm Pitch Straight Crimp D-sub Connector, Plug, 50 Way
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 8656 series D-sub connector is a part of an industry standard for applications requiring robust and reliable connector. This proven D-sub connector is one of the most popular input/output interconnects, addressing a wide variety of applications. FCI offers D-sub economy range connectors to meet all design requirements and to address increasing needs for proven connectors for less demanding applications.
D-shaped shell design
Stamped and formed contacts
Durability of 50 mating and unmating cycles
Straight and angled terminations
Right angle versions available to meet both Europe and US styles
Supports the need for polarisation
Interchangeable and intermateable with other makes
Economical solution
Can fit into footprint/pitch options of 10.4/2.54mm and 8.08/2.84mm
-55 to 105°C Operating temperature range

Show

865650PLTXLF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Number of Contacts	50 Contact
Gender	Male
Current Rating	5 A
Number of Rows	3 Row
Number of Positions	50 Position
Number of Mating Cycles	200 Cycle
Current Rating (Max)	5A/触头
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	1 kV
	Show
Size-Length	66.65 mm
Size-Width	14.99 mm
Size-Height	14.99 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
