94HAB16RAT - Grayhill
Manufacturer:
Grayhill
ManyChip's Part#:
MC15669923
Category:
DIP Switch, SIP Switch
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:

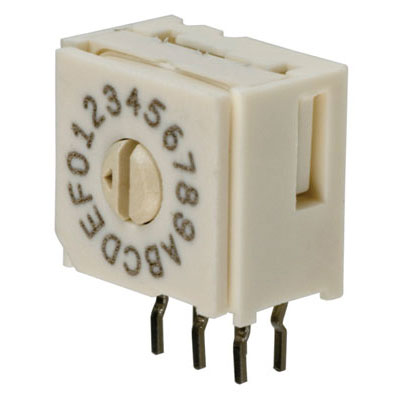

Switch DIP SP16T 16 Flush Screwdriver 0.03A 30VDC PC Pins 10000Cycle 2.54mm Thru-Hole Tube
Stock Locations:
Availability:
253 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Popular rotary encoded DIP switches are available to fit most form factor needs with standard and right-angle through-hole mounting plus surface mount versions as well. Octal, BCD and Hexadecimal are well represented. Optional keyed index knobs are available for the extended shafts in the series as well.

Show

94HAB16RAT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	DIP
Pin Pitch	2.54 mm
Voltage Rating (DC)	30 V
Current Rating	100 mA
Insulation Resistance	≥5000 MΩ
Orientation	Right Angle
Number of Positions	16 Position
Contact Resistance	≤50 MΩ
Switching Voltage	30.0 V
Switching Current	30 mA
Current Rating (Max)	0.03A @30VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	50 VDC
Voltage Rating (DC Max)	30 V
Maximum Contact Resistance (Max)	50 mΩ
	Show
Size-Length	10.92 mm
Size-Width	7.8 mm
Size-Height	10.16 mm
Contact Material	Copper Alloy
Material	Plastic
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509065
ECCN Code	EAR99
