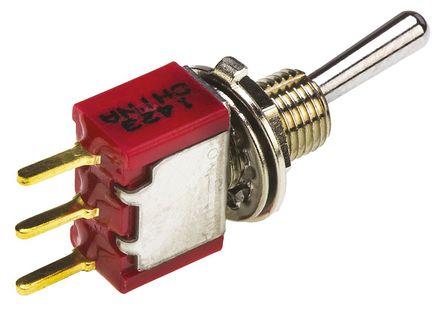

Image is for your reference only,please check specifications for details

A101SYCB04 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC39770342
Category:
Toggle Switch, Switch Toggle
Datasheet:
Datasheet 3D Model
Description:
Switch, Toggle; PC Mount; 0.4VA; 20VAC/VDC; SPDT; 1000 Megohms @ 500VDC
Stock Locations:
Availability:
263 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The A101SYCB04 is a single-pole double-throw (SPDT) Toggle Switch with gold-plated contacts. The Gemini A series offer extensive one pole with multi-circuit configurations including momentary function, locking toggle to avoid unwanted switching as well as bat and flat toggles in different lengths. Terminals are epoxy sealed to prevent the entry of flux, solvent and other contaminants. Gemini A series switch available with PC terminal choices.
Baton long toggle style
Vertical toggle actuation
10mR Contact resistance
1000VAC Dielectric strength
1000MR Insulation resistance
Threaded bushing
Printed circuit termination
UL94V-1 Flammability rating

Show

A101SYCB04 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Contact Plating	Gold
Actuator Type	Standard
Insulation Resistance	30.0 MΩ
Number of Rows	1 Row
Power Rating	400 mW
Orientation	Vertical
Contacts Type	SPDT
Flammability Rating	UL 94 V-1
Number of Positions	2 Position
Contact Resistance	30.0 mΩ
Contact Current Rating	0.4A @20V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	20 VDC
Maximum Contact Resistance (Max)	10 mΩ
	Show
Size-Length	12.7 mm
Size-Width	6.7 mm
Size-Height	29.74 mm
Contact Material	Copper
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536509065
ECCN Code	EAR99
