Description

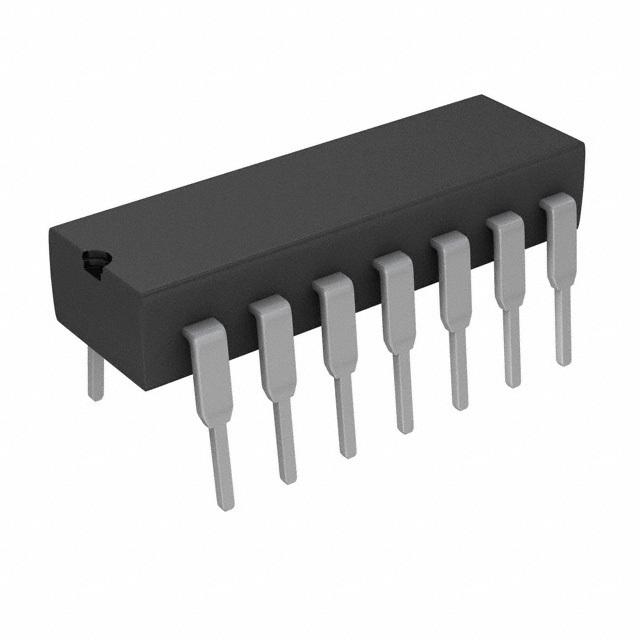

The SN74LS280N is a 9-bit odd/even Parity Generator/Checker utilizes Schottky-clamped TTL high-performance circuitry and feature odd/even outputs to facilitate operation of either odd or even parity application. The word-length capability is easily expanded by cascading as shown under typical application data. It offers the designer a trade-OFF between reduced power consumption and high performance. It can be used to upgrade the performance of most systems utilizing the "180 parity generator/checker. Although It is implemented without expander inputs, the corresponding function is provided by the availability of an input at pin 4 and the absence of any internal connection at pin 3.
Generates either odd or even parity for nine data lines
Cascadable for n-bits
Can be used to upgrade existing systems using MSI parity circuits

Show

SN74LS280N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Digital Logic Level	TTL
Supply Voltage (DC)	5.00 V, 5.50 V (max)
Number of Outputs	9 Output
Output Current	8 mA
Supply Current	16.0 mA
Number of Circuits	9 Bit Circuit
Number of Channels	9 Channel
Number of Positions	14 Position
Number of Bits	9 Bit
Propagation Delay Max (tpd)	50.0 ns
Voltage Nodes	5.00 V
Power Dissipation	80 mW
Output Current Drive	-50.0 µA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	80 mW
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
