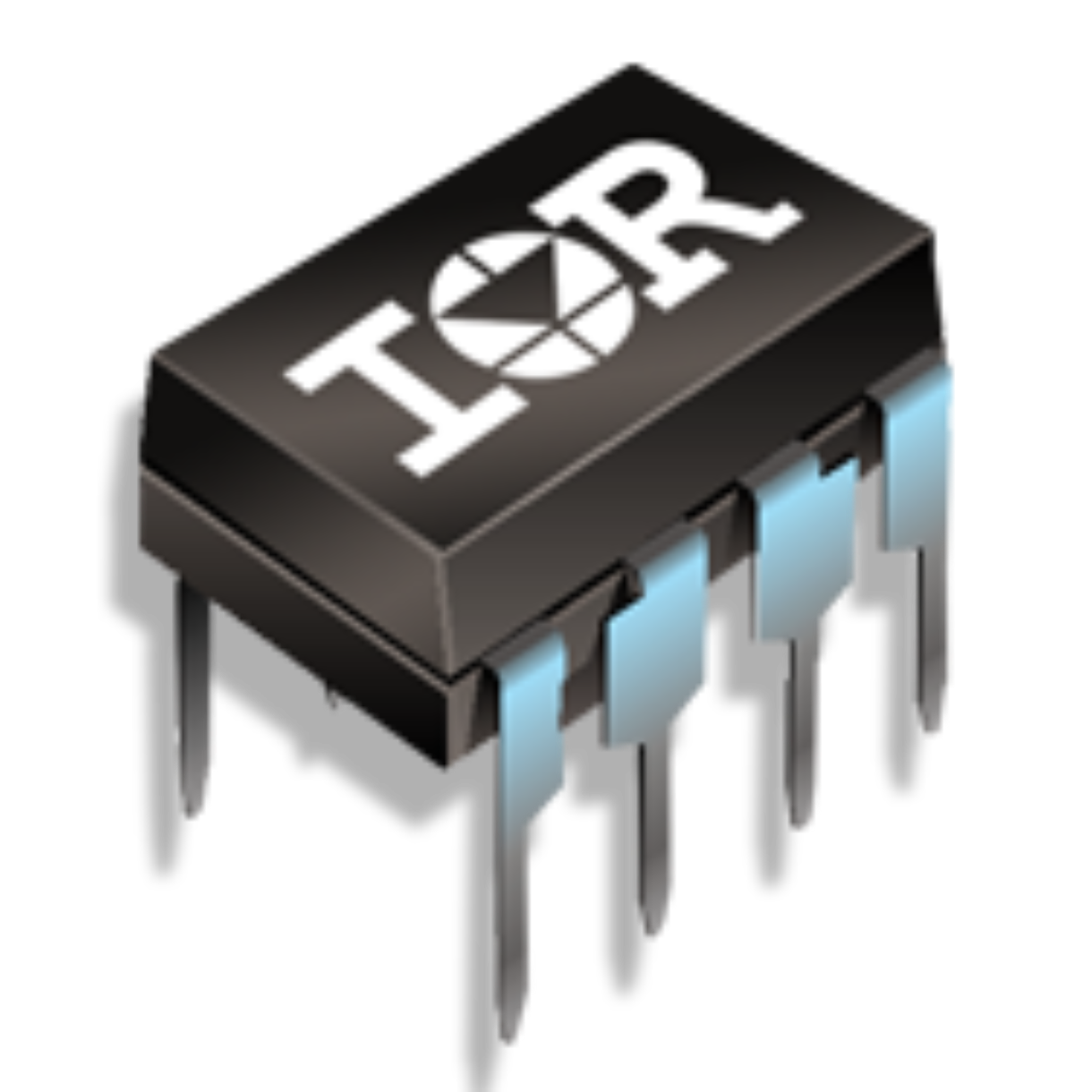

Image is for your reference only,please check specifications for details
- IRS2103 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC429175679
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Полумостовой драйвер 600В, ИС с типовыми токами источника 0.29А и стока 0.6А в 8-выводном корпусе PDIP для IGBT и MOSFET. Также доступен в 8-выводном SOIC.
-
Stock Locations:
-
Availability:255 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Сводка характеристик:
- Драйвер плавающего затвора, предназначенный для работы с самонакачкой
- Полностью работоспособен до +600 В
- Устойчив к отрицательным переходным напряжениям, нечувствителен к dV/dt
- Диапазон питания драйвера затвора от 10 В до 20 В
- Блокировка при пониженном напряжении
- Совместимость с логическими уровнями 3,3 В, 5 В и 15 В
- Логика предотвращения сквозных токов
- Согласованная задержка распространения для обоих каналов
- Внутреннее заданное время паузы
- Выход верхнего плеча синфазен со входом HIN
- Выход нижнего плеча противофазен со входом LIN
IRS2103 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | PDIP-8 |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
