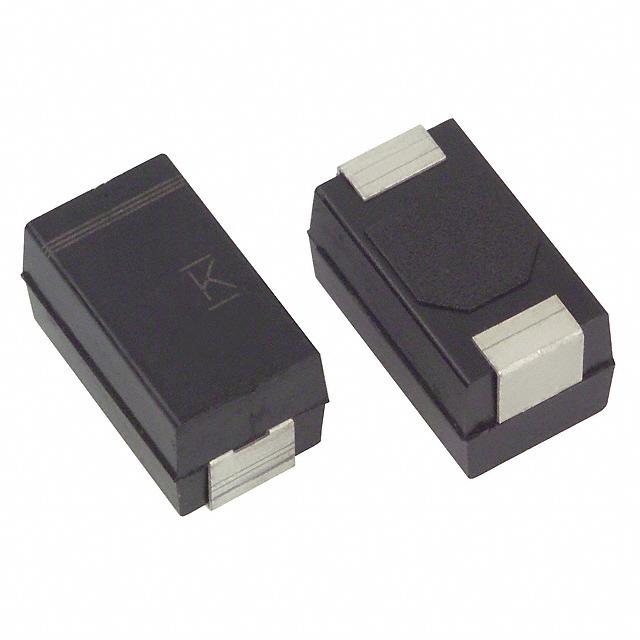

Image is for your reference only,please check specifications for details
- A700D127M004ATE018 - KEMET Corporation
-
Manufacturer:KEMET Corporation
-
ManyChip's Part#:MC78985769
-
Category:Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
-
Package:2917
-
Datasheet:Datasheet 3D Model
-
Description:7343 120uF ±20% 4V
-
Stock Locations:
-
Availability:233 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.43
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Introduction
- KEMET entered the world of aluminum capacitors with the introduction of the AO-CAP, designated the A700 Series, which has been targeted for power management applications. The structure of the AO-CAP uses aluminum as the anode material, aluminum oxide as the dielectric, and a conductive organic polymer for its counter-electrode material. The A700 series is 100% screened for all electrical parameters: Capacitance @ 120Hz, Dissipation Factor (DF) @ 120 Hz, ESR @ 100 kHz, and DC Leakage.
- FEATURES
- • Polymer Cathode Technology
- • Extremely Low ESR
- • High Frequency Capacitance Retention
- • Non-ignition Failure Mode
- • Capacitance: 22 to 470 µF
- • Self-healing Mechanism
- • -55° to +125°C Capability
- • No temperature voltage Derating Up To 125°C
- • Robust to Surface Mount Process
- • 100% Accelerated Steady State Aging
- • Pb Free and RoHS Compliant
- • Solid-state Technology
- • Molded Case with Wraparound Termination
- • Voltage: 2 to 10V
- • No Reformation Required
- • EIA Standard Case Size
- • No Dry-out Related Failure Mechanism
- APPLICATIONS
- • Input/Output Filters for voltage regulators, converters, and SMPS
- • Battery Decoupling (portable, handheld electronics)
- • Power Decoupling (Procesor, Transmitter circuits)
- • Bulk Capacitor Requirements
A700D127M004ATE018 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 7343 |
| Case/Package | 2917 |
| Voltage Rating (DC) | 4 V |
| Capacitance | 120 µF |
| Equivalent Series Resistance (ESR) | 18 mΩ |
| Capacitance Tolerance | ±20 % |
| Ripple Current | 3.7 A |
| Ripple Current (High Frequency) | 3.7A @100kHz |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 4 V |
| Show | |
| Size-Length | 7.3 mm |
| Size-Width | 4.3 mm |
| Size-Height | 2.8 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 500 |
| Life (Hours) | 2000 h |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
