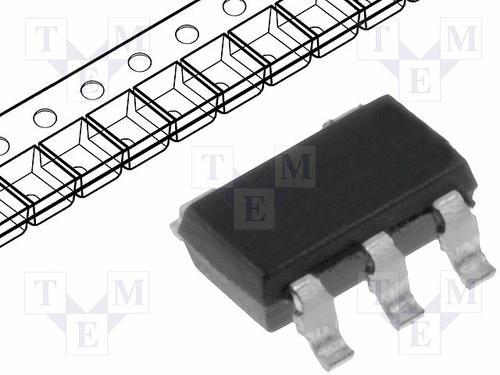

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD1580BRTZ is a 1.2V Micropower Precision Shunt Voltage Reference that provides an accurate 1.225V output for input currents between 50µA and 10mA. The superior accuracy and stability of the AD1580 is made possible by the precise matching and thermal tracking of on-chip components. Proprietary curvature correction design techniques have been used to minimize the nonlinearities in the voltage output temperature characteristics. It is stable with any value of capacitive load. The low minimum operating current makes it ideal for use in battery-powered 3V or 5V systems. However, the wide operating current range means that the AD1580 is extremely versatile and suitable for use in a wide variety of high current applications.
Wide operating range (50µA to 10mA)
±0.1% Maximum initial accuracy
0.5R Maximum output impedance
20µVrms Wideband noise (10Hz to 10kHz)
High ESD rating
Compact and surface mount
ESD sensitive device, take proper precaution while handling the device.

Show

AD1580BRTZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23
Output Current	10 mA
Number of Positions	3 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 85℃
Temperature Coefficient	±50 ppm/℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
