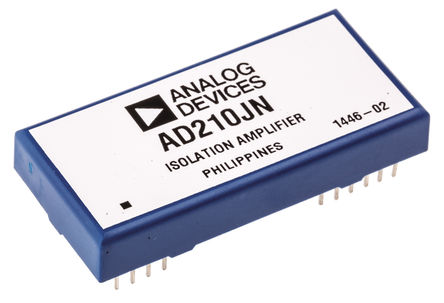

AD210JN - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC751982
Category:
Amplifier, Buffer IC
Package:
DIP-38
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD210JN Isolation Amplifier, 3Port, 1 Amplifier, 5mV, 1.5kV, 13.5V to 16.5V, DIP, 30Pins
Stock Locations:
Availability:
212 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 224.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD210JN is a latest member of a new generation of low cost, high performance precision, wide bandwidth 3-port Isolation Amplifier. This is manufactured with surface-mounted components in an automated assembly process. It combines design expertise with state-of-the-art manufacturing technology to produce an extremely compact and economical isolator whose performance and abundant user features far exceed those offered in more expensive devices. This provides a complete isolation function with both signal and power isolation supplied via transformer coupling internal to the module. Functionally complete design, powered by a single +15V supply, eliminates the need for an external DC/DC converter, unlike optically coupled isolation devices. Providing high accuracy and complete galvanic isolation, this interrupts ground loops and leakage paths and rejects common-mode voltage and noise that may otherwise degrade measurement accuracy.
High common-mode performance
High accuracy
Small size
Isolated power
Flexible input

Show

AD210JN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	12 Pin
Case/Package	DIP-38
Supply Voltage (DC)	5.00 V
Supply Current	50 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	30 Position
Common Mode Rejection Ratio	120 dB
Bandwidth	20 kHz
Slew Rate	1.00 V/μs
Isolation Voltage	1.5 kV
Input Offset Voltage	5 mV
Input Bias Current	30 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	20 kHz
Gain Bandwidth	20 kHz
Minimum CMRR Range	120dB ~ 130dB
Supply Voltage	13.5V ~ 16.5V
Supply Voltage (Max)	15V ~ 18V
Supply Voltage (Min)	13.5 V
	Show
Size-Length	53.3 mm
Size-Width	25.4 mm
Size-Height	8.91 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
