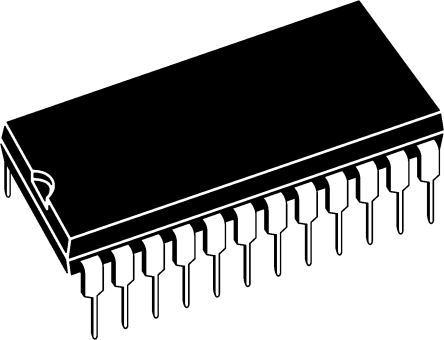

Image is for your reference only,please check specifications for details

AD565AJD - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC963919
Category:
Digital to Analog, DAC IC
Package:
DIP-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD565AJD Digital to Analog Converter, 12Bit, 4MSPS, Parallel, ± 11.4V to ± 16.5V, DIP, 24Pins
Stock Locations:
Availability:
270 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 53.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Thanks to Analog Devices and their AD565AJD DAC converter, you"ll easily be able to convert computerized digital information and translate it into perceptible analog data. This device is based on Current Steering architecture. This device"s digital interface is parallel. It has a current output. This DAC has a resolution of 12bit. Its typical dual supply voltage is ±12 V, with a minimum of ±11.4 V and maximum of ±16.5 V. This DAC has a temperature range of 0 °C to 70 °C. This device comes in tube packaging. This device uses dual power supplies.

Show

AD565AJD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	24 Pin
Case/Package	DIP-24
Supply Voltage (DC)	15.0V (max)
Number of Outputs	1 Output
Supply Current	-12.0 mA
Number of Channels	1 Channel
Number of Positions	24 Position
Number of Bits	12 Bit
Power Dissipation	345 mW
Sample Rate	4.00 MHz
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	345 mW
Number of DACs	1 DAC
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	11.4 V
	Show
Size-Length	32.77 mm
Size-Width	15.49 mm
Size-Height	5.72 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
