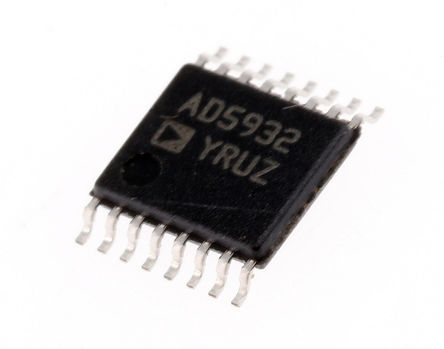

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD5932YRUZ is a waveform generator providing a programmable frequency scan. Utilizing embedded digital processing allowing enhanced frequency control the device generates synthesized analogue or digital frequency-stepped waveforms. Because frequency profiles are pre-programmed continuous write cycles are eliminated, thereby freeing up valuable DSP/µController resources. Waveforms start from a known phase and are incremented phase continuously allowing phase shifts to be easily determined. To program the device, the user enters the start frequency, the increment step size, the number of increments to be made and the time interval the part stays at each frequency. The frequency profile can be initiated by toggling the CTRL pin.
Programmable frequency profile
No external components necessary
Output frequency up to 25 MHz
Burst-and-listen capability
Sinusoidal/triangular/square wave outputs
Automatic or single pin control of frequency stepping

Show

AD5932YRUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Frequency	25 MHz
Supply Voltage (DC)	2.30V (min)
Supply Current	2.4 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	10 Bit
Power Dissipation	40.0 mW
Resolution (Bits)	10.0 Bit
Bandwidth	50 MHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
