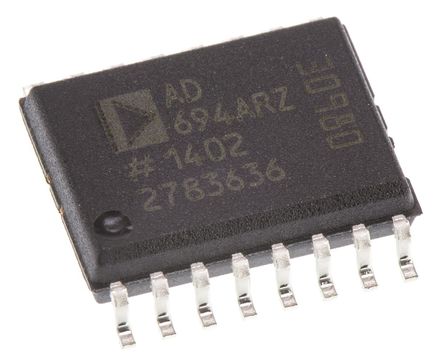

Image is for your reference only,please check specifications for details

AD694ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC602104
Category:
Instrumentation Amplifier IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD694ARZ Instrument Amplifier, Current Transmitter, 1 Amplifier, 150V, 300kHz, 4.5V to 36V, SOIC
Stock Locations:
Availability:
1,228 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD694ARZ is a Monolithic Current that accepts high level signal inputs to drive a standard 4 to 20mA current loop for the control of valves, actuators and other devices commonly used in process control. The input signal is buffered by an input amplifier that can be used to scale the input signal or buffer the output from a current mode DAC. Precalibrated input spans of 0 to 2V and 0 to 10V are selected by simple pin strapping, other spans may be programmed with external resistors. The output stage compliance extends to within 2V of VS and its special design allows the output voltage to extend below common in dual supply operation. An alarm warns of an open 4 to 20mA loop or noncompliance of the output stage. Active laser trimming of the AD694"s thin film resistors results in high levels of accuracy without the need for additional adjustments and calibration.
Single or dual supply operation
Wide output compliance
Input buffer amplifier
Open-loop alarm
0.002% Typical nonlinearity
ESD sensitive device, take proper precaution while handling the device.

Show

AD694ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	4.50V (min)
Output Voltage	2.10 V
Output Current	20 mA
Supply Current	23 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	90 dB
Quiescent Current	1.5 mA
Bandwidth	300 kHz
Input Offset Voltage	150 µV
Input Bias Current	1.5 nA
Output Current (Max)	20 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	300 kHz
Minimum CMRR Range	80 dB
Supply Voltage	4.5V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 36V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
