Description
- Product Details

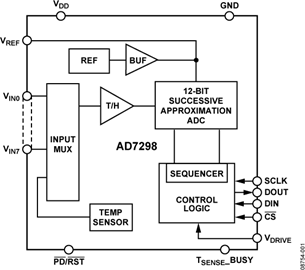

- The AD7298 is a 12-bit, high speed, low power, 8-channel, successive approximation ADC with an internal temperature sensor. The part operates from a single 3.3 V power supply and features throughput rates up to 1 MSPS. The device contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 30 MHz.
- The AD7298 offers a programmable sequencer, which enables the selection of a pre-programmable sequence of channels for conversion. The device has an on-chip 2.5 V reference that can be disabled to allow the use of an external reference.
- The AD7298 offers a programmable sequencer, which enables the selection of a preprogrammable sequence of channels for conversion. The device has an on-chip, 2.5 V reference that can be disabled to allow the use of an external reference.
- The AD7298 includes a high accuracy band gap temperature sensor, which is monitored and digitized by the 12-bit ADC to give a resolution of 0.25°C. The device offers a 4-wire serial interface compatible with SPI and DSP interface standards.
- The AD7298 uses advanced design techniques to achieve very low power dissipation at high throughput rates. The part also offers flexible power/throughput rate management options. The part is offered in a 20-lead LFCSP package.
- **Product Highlights**
- 1. Ideally suited to monitoring system variables in a variety of systems including telecommunications, process and industrial control.
- 2. High Throughput rate of 1Msps per channel with Low Power Consumption.
- 3. Eight Single-Ended Inputs with a Channel Sequencer. A consecutive sequence of channels can be selected on which the ADC cycles and converts.
- 4. Integrated temperature sensor with 0.25°C resolution.
- ### Features and Benefits
- 12 bit SAR ADC
- 8 single-ended inputs
- Channel sequencer functionality
- Fast throughput of 1Msps
- Analog Input Range 0 to 2.5V
- 12-bit temperature-to-digital converter
- Temperature sensor accuracy of ±1°C
- Temperature range: −40°C to +125°C
- Specified for VDD of 2.8 V to 3.6V
- Logic Voltage VDRIVE = 1.65V to 3.6V
- Power-down current : <10 μA
- Internal 2.5V Reference
- Internal Power on Reset
- High speed serial interface SPI
- 20-lead LFCSP
AD7298 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Recommended for New Designs |
| RoHS | RoHS Compliant |
