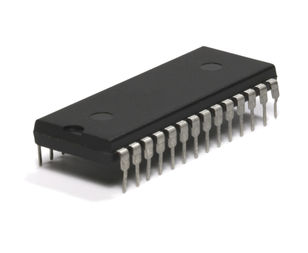

- AD760AQ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC3548444
-
Category:Digital to Analog, DAC IC
-
Package:CDIP-28
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD760AQ Digital to Analog Converter, 16Bit, Serial, 14.25V to 15.75V, DIP, 28Pins
-
Stock Locations:
-
Availability:256 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 250.36
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- It is manufactured on Analog Devices" BiMOS II process. This process allows the fabrication of low power CMOS logic functions on the same chip as high precision bipolar linear circuitry.
- Self-calibration is initiated by simply pulsing the CAL pin low. The CALOK pin indicates when calibration has been successfully completed. The output multiplexer (MUXOUT) can be used to send the output to the bottom of the output range during calibration.
- Data can be loaded into the AD760 as straight binary, serial data or as two 8-bit bytes. In serial mode, 16-bit or 18-bit data can be used and the serial mode input format is pin selectable, to be MSB or LSB first. This is made possible by three digital input pins which have dual functions (Pins 12, 13, and 14). In byte mode the user can similarly define whether the high byte or low byte is loaded first. The serial output (SOUT) pin allows the user to daisy chain several AD760s by shifting the data through the input latch into the next DAC thus minimizing the number of control lines required in a multiple DAC application. The double buffered latch structure eliminates data skew errors and provides for simultaneous updating of DACs in a multi-DAC system.
- The asynchronous CLR function can be configured to clear the output to minus full-scale or midscale depending on the state of Pin 17 when CLR is strobed. The AD760 also powers up with the MUX output in a predetermined state by means of a digital and analog power supply detection circuit. This is particularly useful for robotic and industrial control applications.
- The AD760 is available in a 28-pin, 600 mil cerdip package. The AQ version is specified from -40°C to +85°C.
- ### Features and Benefits
- ±0.2 LSB (±0.00031%) Typ Peak DNL and INL
- ±0.5 LSB (±0.00076%) Typ Unipolar Offset, Bipolar Zero
- 17-Bit Monotonicity Guaranteed
- 18-Bit Resolution (in Serial Mode)
- Complete 16/18-Bit D/A Function
- On-Chip Output Amplifier
- On-Chip Buried Zener Voltage Reference
- Microprocessor Compatible
- Serial or Byte Input
- Double Buffered Latches
- Asynchronous Clear Function
- Serial Output Pin Facilitates Daisy Chaining
- Pin Strappable Unipolar or Bipolar Output
- Low THD+N: 0.005%
- MUX Output Control on Power-Up and Supply Glitches
AD760AQ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 28 Pin |
| Case/Package | CDIP-28 |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 0.725 W |
| Sample Rate | 167 ksps |
| Resolution (Bits) | 18.0 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 725 mW |
| Number of DACs | 1 DAC |
| Supply Voltage | 14.25V ~ 15.75V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
