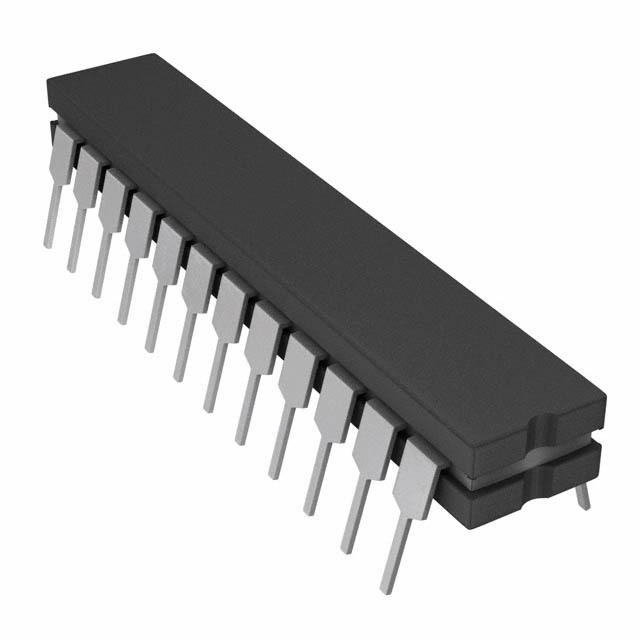

AD767BD - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC15422696
Category:
Digital to Analog, DAC IC
Package:
CDIP-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD767BD Digital to Analog Converter, 12Bit, Parallel, ± 11.4V to ± 16.5V, DIP, 24Pins
Stock Locations:
Availability:
211 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 58.93

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

With this AD767BD DAC converter from Analog Devices converting analog signals into digital is easy. This device"s digital interface is parallel. This device is based on Current Steering architecture. It has a voltage output. This DAC has a resolution of 12bit. Its typical dual supply voltage is ±12|±15 V, with a minimum of ±11.4 V and maximum of ±16.5 V. This DAC has a minimum operating temperature of -25 °C and a maximum of 85 °C. This device comes in tube packaging. This device uses dual power supplies.

Show

AD767BD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	24 Pin
Case/Package	CDIP-24
Number of Outputs	1 Output
Number of Channels	1 Channel
Number of Bits	12 Bit
Power Dissipation	1 W
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	1000 mW
Number of DACs	1 DAC
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	11.4 V
	Show
Size-Height	3.81 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
