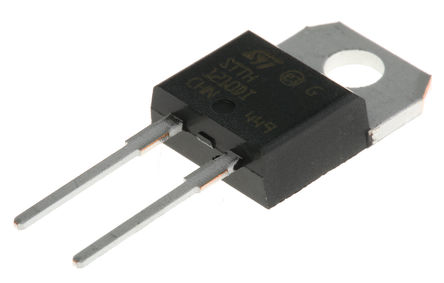

Image is for your reference only,please check specifications for details

STTH1210DI - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2151104
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH1210DI Fast / Ultrafast Diode, 1kV, 12A, Single, 1.6V, 48ns, 80A
Stock Locations:
Availability:
58 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH1210DI is an ultrafast Soft Recovery Diode with high reverse voltage capability. The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long term reliability. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate competitive advantage for this device.
Very low conduction and switching losses
High frequency and high pulsed current operation
High junction temperature
20A RMS forward current
1.9°C/W Junction to case thermal resistance

Show

STTH1210DI Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	1.00 kV
Current Rating	12.0 A
Output Current	≤12.0 A
Load Current	12 A
Forward Voltage	2V @12A
Polarity	Standard
Thermal Resistance	3.1℃/W (RθJC)
Reverse recovery time	48 ns
Forward Current	12 A
Max Forward Surge Current (Ifsm)	80 A
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	12 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.3 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
