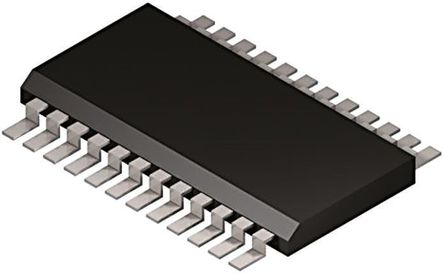

Image is for your reference only,please check specifications for details
- AD7731BRUZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC802696
-
Category:Analog to Digital, ADC IC
-
Package:TSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD7731BRUZ Analog to Digital Converter, 24Bit, 6.4KSPS, Single, 2.7V, 5V, TSSOP
-
Stock Locations:
-
Availability:271 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 227.87
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD7731 is a complete analog front-end for process control applications. The device has a proprietary programmable gain front end that allows it to accept a range of input signal ranges, including low level signals, directly from a transducer. The sigmadelta architecture of the part consists of an analog modulator and a low pass programmable digital filter, allowing adjustment of filter cutoff, output rate and settling time.
- The part features three buffered differential programmable gain analog inputs (which can be configured as five pseudo-differential inputs), as well as a differential reference input. The part operates from a single +5 V supply and accepts seven unipolar analog input ranges: 0 to +20 mV, +40 mV, +80 mV, +160 mV, +320 mV, +640 mV and +1.28 V, and seven bipolar ranges: ±20 mV, ±40 mV, ±80 mV, ±160 mV, ±320 mV, ±640 mV and ±1.28 V. The peak-to-peak resolution achievable directly from the part is 16 bits at an 800 Hz output rate. The part can switch between channels with 1 ms settling time and maintain a performance level of 13 bits of peak-to-peak resolution.
- The serial interface on the part can be configured for three-wire operation and is compatible with microcontrollers and digital signal processors. The AD7731 contains self-calibration and system calibration options and features an offset drift of less than 5 nV/°C and a gain drift of less than 2 ppm/°C.
- The part is available in a 24-lead plastic DIP, a 24-lead SOIC and 24-lead TSSOP package.
- **Applications**
- Process Control
- PLCs/DCS
- Industrial Instrumentation
- ### Features and Benefits
- 24-Bit Sigma-Delta ADC
- 16 Bits p-p Resolution at 800 Hz Output Rate
- Programmable Output Rates up to 6.4 kHz
- Programmable Gain Front End
- ±0.0015% Nonlinearity
- Buffered Differential Inputs
- Programmable Filter Cutoffs
- _FAST_Step™* Mode for Channel Sequencing
- Single Supply Operation
- * FASTStep is a trademark of Analog Devices, Inc.
AD7731BRUZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Supply Voltage (DC) | 2.70V (min) |
| Supply Current | 10.3 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 3 Channel |
| Number of Positions | 24 Position |
| Number of Bits | 24 Bit |
| Power Dissipation | 67.5 W |
| Sample Rate | 6.4 ksps |
| Resolution (Bits) | 24.0 Bit |
| Input Impedance | 9.00 GΩ |
| Number of ADCs | 1 ADC |
| Number of Inputs | 3, 5 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 67.5 mW |
| Number of Input Channels | 5, 3 Channel |
| Supply Voltage (Max) | 5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 7.8 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
