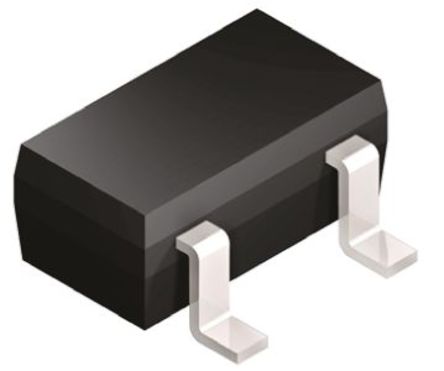

- SP0502BAHTG - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC684933
-
Category:TVS Diode
-
Package:SOT-23-3
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE SP0502BAHTG TVS Diode, SPA SP050xBA Series, Unidirectional, 5.5V, 8V, SOT-23, 3Pins
-
Stock Locations:
-
Availability:8,158 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.07
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SP0502BAHTG is an unidirectional TVS Diode Array with matte tin-plated terminals and moulded epoxy body. This surface-mount family of arrays suppresses ESD and other transient overvoltage events. Used to meet the international electro technical compatibility (IEC transient immunity standards IEC 61000-4-2 for electrostatic discharge requirements), this device can help protect sensitive digital or analogue input circuits on data, signal or control lines with voltage levels up to 5VDC. The monolithic silicon arrays are comprised of specially designed structures for transient voltage suppression (TVS). The size and shape of these structures have be tailored for transient protection. The low capacitance and clamp voltage are ideal for high speed signal line protection.
- 100nA at 5V Reverse standoff leakage current
- 30pF Typical low input capacitance
- -55 to 125°C Operating temperature range
- Green product
- UL94V-0 Flammability rating
SP0502BAHTG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 5.00 V |
| Operating Voltage | 5 V |
| Capacitance | 30 pF |
| Breakdown Voltage | 5.5 V |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 3 Position |
| Power Dissipation | 0.225 W |
| Clamping Voltage | 8.5 V |
| Test Current | 10 mA |
| Peak Pulse Power | 0.22 W |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Junction Temperature (Max) | 85 ℃ |
| Power Dissipation (Max) | 225 mW |
| Supply Voltage | 5 V |
| Show | |
| Size-Length | 3.04 mm |
| Size-Width | 2.64 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
