Image is for your reference only,please check specifications for details

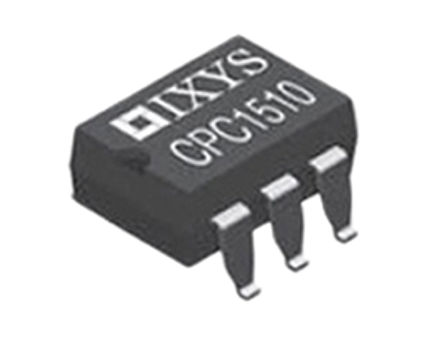

- CPC1510GS - IXYS Semiconductor
-
Manufacturer:IXYS Semiconductor
-
ManyChip's Part#:MC75833503
-
Category:Solid State Relay
-
Package:SMD-6
-
Datasheet:Datasheet 3D Model
-
Description:Relay SSR 50mA 1.45V DC-IN 0.2A 250V AC-DC-OUT 6Pin PDIP SMD Tube
-
Stock Locations:
-
Availability:204 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.81
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
CPC1510GS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SMD-6 |
| Capacitance | 205 pF |
| Output Voltage | 250 V |
| Output Current | 200 mA |
| Load Current | 200 mA |
| Input Current | 10 mA |
| Power Dissipation | 800 mW |
| Isolation Voltage | 3750 v |
| Input Voltage (Max) | 1.45 V |
| Input Voltage (Min) | 1.15 V |
| Output Voltage (Max) | 250 V |
| Output Current (Max) | 0.2 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 800 mW |
| Input Voltage | 1.29 VDC |
| Show | |
| Size-Length | 8.38 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
