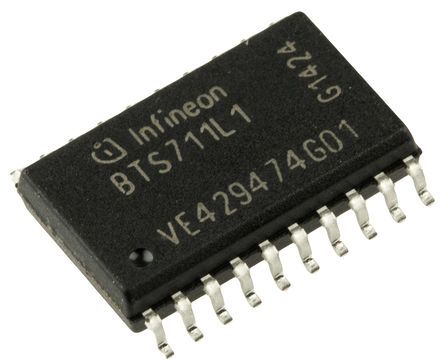

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS711L1 is a high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. It is placed between the supply and load in order to control the application.
Short-circuit protection with latch
Overload protection
Current limitation
Thermal shutdown with restart
Overvoltage protection
Loss of ground protection
Loss of Vbb protection
Fast demagnetizing of inductive loads
Electrostatic discharge (ESD) protection
Open drain diagnostic output
Open load detection in ON-state
12 or 24V capable
Single or multi channel

Show

BTS711L1XUMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOP
Number of Outputs	4 Output
Output Current	4.4 A
Supply Current	8 mA
Number of Positions	20 Position
Power Dissipation	3.6 W
Output Current (Min)	1.7 A
Number of Inputs	4 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	3600 mW
Input Voltage	16 V
	Show
Size-Length	12.8 mm
Size-Width	7.6 mm
Size-Height	2.45 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
