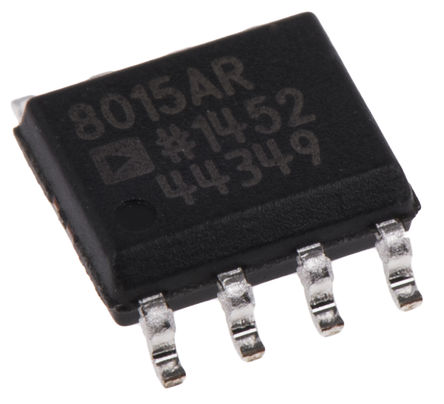

- AD8015ARZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC423257
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD8015ARZ Transimpedance Amplifier, 5V, 240MHz, -350A, 350A, 1000mV, SOIC
-
Stock Locations:
-
Availability:289 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.55
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AD8015ARZ is a wide bandwidth, single supply Transimpedance Amplifier optimized for use in a fibre optic receiver circuit. It is a complete, single chip solution for converting photodiode current into a differential voltage output. The 240MHz bandwidth enables application in FDDI receivers and SONET/SDH receivers with data rates up to 155Mbps. This high bandwidth supports data rates beyond 300Mbps. The differential outputs drive ECL directly or can drive a comparator/fibre optic post amplifier. In addition to fibre optic applications, silicon alternative to GaAs-based transimpedance amplifier is ideal for systems requiring a wide dynamic range preamplifier or single ended to differential conversion. The IC can be used with a standard ECL power supply (-5.2V) or a PECL (+5V) power supply, the common mode at the output is ECL compatible.
- Wide bandwidth, low noise
- 500ps Pulse width modulation
- 1.5ns Rise time/fall time
- Wide dynamic range
- -36dBm at 155.52Mbps Optical sensitivity
- 5V at 25mA Low power
- Electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
AD8015ARZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 5.00 V |
| Supply Current | 25 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 125 mW |
| Bandwidth | 0.24 GHz |
| Input Current (Min) | 350 µA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 240 MHz |
| Gain Bandwidth | 240 MHz |
| Power Dissipation (Max) | 900 mW |
| Supply Voltage | 5 V |
| Supply Voltage (Max) | 11 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | PB free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
