Description
- GENERAL DESCRIPTION
- The AD8051 (single), AD8052 (dual), and AD8054 (quad) are low cost, high speed, voltage feedback amplifiers. The amplifiers operate on +3 V, +5 V, or ±5 V supplies at low supply current. They have true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.
- Despite their low cost, the AD8051/AD8052/AD8054 provide excellent overall performance and versatility. The output voltage swings to within 25 mV of each rail, providing maximum output dynamic range with excellent overdrive recovery.
- The AD8051/AD8052/AD8054 are well suited for video electronics, cameras, video switchers, or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.
- FEATURES
- High speed and fast settling on 5 V
- 110 MHz, −3 dB bandwidth (G = +1) (AD8051/AD8052)
- 150 MHz, −3 dB bandwidth (G = +1) (AD8054)
- 145 V/μs slew rate
- 50 ns settling time to 0.1%
- Single-supply operation
- Output swings to within 25 mV of either rail
- Input voltage range: −0.2 V to +4 V; VS = 5 V
- Video specifications (G = +2)
- 0.1 dB gain flatness: 20 MHz; RL = 150 Ω
- Differential gain/phase: 0.03%/0.03°
- Low distortion
- −80 dBc total harmonic @ 1 MHz, RL = 100 Ω
- Outstanding load drive capability
- Drives 45 mA, 0.5 V from supply rails (AD8051/AD8052)
- Drives 50 pF capacitive load (G = +1) (AD8051/AD8052)
- Low power: 2.75 mA/amplifier (AD8054)
- Low power: 4.4 mA/amplifier (AD8051/AD8052)
- APPLICATIONS
- Active filters
- Analog-to-digital drivers
- Clock buffer
- Consumer video
- Professional cameras
- CCD imaging systems
- CD/DVD ROMs

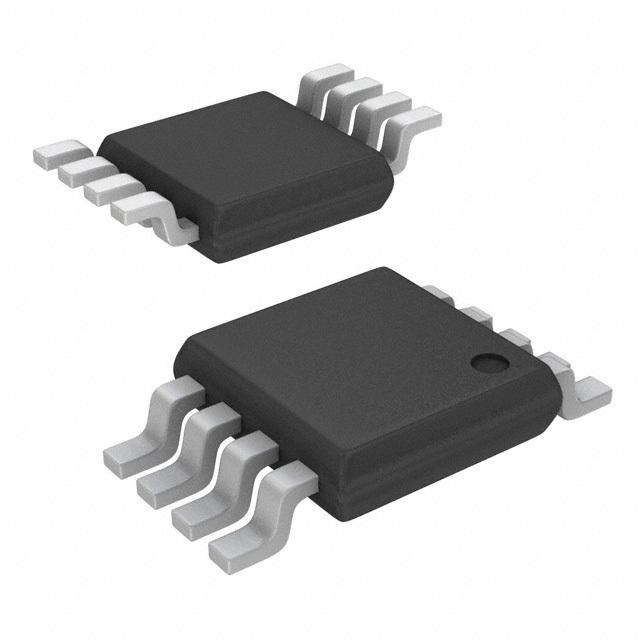

AD8052ARM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Output Current | 45.0 mA |
| Supply Current | 4.8 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 72 dB |
| Input Capacitance | 1.40 pF |
| Slew Rate | 145 V/μs |
| Gain Bandwidth Product | 80.0 MHz |
| Input Impedance | 290 kΩ |
| Input Offset Voltage | 1.8 mV |
| Input Bias Current | 1.4 µA |
| 3dB Bandwidth | 110 MHz |
| Minimum CMRR Range | 72 dB |
| Supply Voltage (Max) | 12 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Width | 3 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| HK STC License | NLR |
