Description
- Product Details
- The AD8138 is a major advancement over op amps for differential signal processing. The AD8138 can be used as a single-ended-to-differential amplifier or as a differential-to-differential amplifier. The AD8138 is as easy to use as an op amp and greatly simplifies differential signal amplification and driving. Manufactured on the proprietary ADI XFCB bipolar process, the AD8138 has a −3 dB bandwidth of 320 MHz and delivers a differential signal with the lowest harmonic distortion available in a differential amplifier. The AD8138 has a unique internal feedback feature that provides balanced output gain and phase matching, suppressing even order harmonics. The internal feedback circuit also minimizes any gain error that would be associated with the mismatches in the external gain setting resistors.

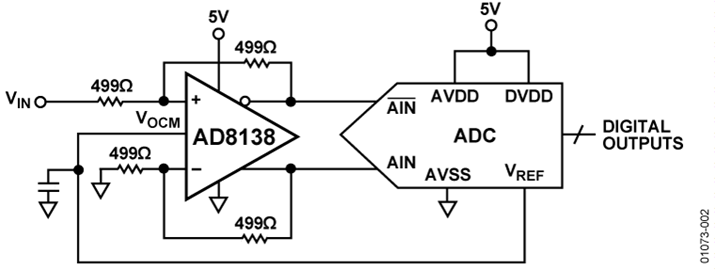

- The differential output of the AD8138 helps balance the input to differential ADCs, maximizing the performance of the ADC. The AD8138 eliminates the need for a transformer with high performance ADCs, preserving the low frequency and dc information. The common-mode level of the differential output is adjustable by a voltage on the VOCM pin, easily level-shifting the input signals for driving single-supply ADCs. Fast overload recovery preserves sampling accuracy.
- The AD8138 distortion performance makes it an ideal ADC driver for communication systems, with distortion performance good enough to drive state-of-the-art 10-bit to 16-bit converters at high frequencies. The high bandwidth and IP3 of the AD8138 also make it appropriate for use as a gain block in IF and baseband signal chains. The AD8138 offset and dynamic performance makes it well suited for a wide variety of signal processing and data acquisition applications.
- The AD8138 is available in both SOIC and MSOP packages for operation over −40°C to +85°C temperatures.
- The AD8138-EP supports defense and aerospace applications (AQEC).
- ### Features and Benefits
- Easy to use, single-ended-to-differential conversion
- Adjustable output common-mode voltage
- Externally adjustable gain
- Low harmonic distortion
- -94 dBc SFDR at 5 MHz
- -85 dBc SFDR at 20 MHz
- -3 dB bandwidth of 320 MHz, G = +1
- Fast settling to 0.01% of 16 ns
- Slew rate 1150 V/µs
- Fast overdrive recovery of 4 ns
- Low input voltage noise of 5 nV/√Hz
- See data sheet for additional features
- **AD8138-EP supports defense and aerospace applications (AQEC standard)**
- Download AD8138-EP data sheet (pdf)
- Extended temperature range: −55ºC to +105°C
- Controlled manufacturing baseline
- One assembly/test site
- One fabrication site
- Enhanced product change notification
- Qualification data available on request
- V62/12629 DSCC Drawing Number
AD8138ARM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Output Current | 95mA @5V |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 550 mW |
| Common Mode Rejection Ratio | 70 dB |
| Slew Rate | 1.15 kV/μs |
| Input Offset Voltage | 2.5 mV |
| Input Bias Current | 7000 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 550 mW |
| Minimum CMRR Range | 60dB ~ 75dB |
| Supply Voltage (Max) | 10V ~ 15V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
