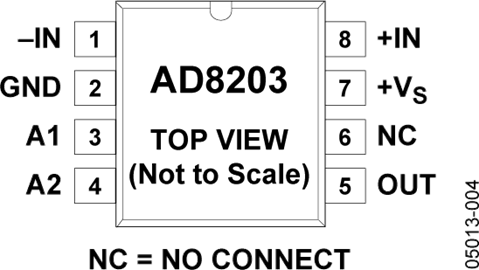

Image is for your reference only,please check specifications for details

AD8203YRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC532873
Category:
Operational Amplifier, OP Amp IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8203YRMZ Differential Amplifier, Single-Supply, 1 Amplifiers, 2mV, 14dB, 60kHz, -40℃, 125℃
Stock Locations:
Availability:
231 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.1

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8203YRMZ is a single-supply Difference Amplifier for amplifying and low-pass filtering small differential voltages in the presence of a large common-mode voltage (CMV). The input CMV range extends from -6 to +30V at a typical supply voltage of 5V. The AD8203 features an externally accessible 100kR resistor at the output of the preamp A1, which can be used for low-pass filter applications and for establishing gains other than 14.
Low-pass filter (1-pole or 2-pole)
Excellent AC and DC performance
Indefinite output short-circuit duration
44V Transient input voltage (400ms)
35V Continuous input voltage (common mode)
0.3V Reversed supply voltage protection

Show

AD8203YRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	5.00 V
Supply Current	250 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	80 dB
Bandwidth	60 kHz
Slew Rate	330 mV/μs
Gain Bandwidth Product	60 kHz
Input Offset Voltage	2 mV
Input Bias Current	40 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	60 kHz
Minimum CMRR Range	80 dB
Supply Voltage	3.5V ~ 12V
Supply Voltage (Max)	10V ~ 15V
Supply Voltage (Min)	3.5 V
	Show
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
