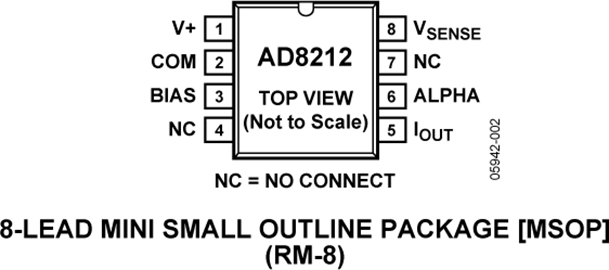

Image is for your reference only,please check specifications for details

AD8212YRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC155200
Category:
Amplifier, Buffer IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8212YRMZ Current Sense Amplifier, High Voltage, 1 Amplifier, 185µA, MSOP, 8Pins, -40℃, 125℃
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.35

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8212YRMZ is a high common-mode voltage Current Shunt Monitor. It accurately amplifies a small differential input voltage in the presence of large common-mode voltages up to 65V (>500V with an external PNP transistor). The AD8212 is ideal for current monitoring across a shunt resistor in applications controlling loads, such as motors and solenoids. The current output of the device is proportional to the input differential voltage. The user can select an external resistor to set the desired gain. The typical common-mode voltage range of the AD8212 is 7 to 65V. Another feature of the AD8212 is high voltage operation, which is achieved by using an external high voltage breakdown PNP transistor. In this configuration, the common-mode range of the AD8212 is equal to the breakdown of the external PNP transistor. Therefore, operation at several hundred volts is easily achieved. The AD8212 features a patented output base current compensation circuit for high voltage operation mode.
Adjustable gain
Current output
Indefinite output short-circuit duration
Integrated 5V series regulator
0.3V Reverse supply voltage

Show

AD8212YRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	7.00V (min)
Output Current	500 µA
Supply Current	720 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	100 dB
Bandwidth	1 MHz
Gain Bandwidth Product	1 MHz
Input Offset Voltage	2 mV
Input Bias Current	185 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Supply Voltage (Max)	65 V
Supply Voltage (Min)	7 V
Input Voltage	7V ~ 65V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
