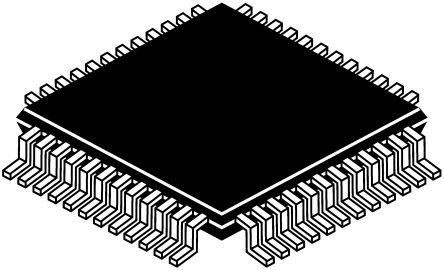

Image is for your reference only,please check specifications for details
- DAC8734SPFB - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC20234696
-
Category:Digital to Analog, DAC IC
-
Package:TQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter 16Bit Quad High Accuracy +/-16.5V output Digital-to-Analog Converter DAC 4CH R-2R 16Bit 48Pin TQFP
-
Stock Locations:
-
Availability:260 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 61.28
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DAC8734SPFB is a high-accuracy quad-channel 16-bit Digital-to-analog Converter (DAC) operates from supply voltages of ±5 to ±18V in bipolar output mode and from ±5 to +24V/-12V in unipolar mode. The DAC8734 provides 16-bit monotonicity, excellent integral nonlinearity (INL) error of ±1LSB, low glitch and low noise over the operating temperature range of -40 to 105°C. This device is trimmed in production for very low zero and gain errors. In addition, the DAC8734 implements user-programmable system-level calibration function to achieve ±0.125LSB zero error and ±1LSB gain error. The DAC8734 has integrated reference buffers and output buffers. It features a standard high-speed 1.8/3/5V serial peripheral interface that operates at clock rates of up to 50MHz to communicate with a DSP or microprocessor. The four DAC channels and the auxiliary registers are addressed with four address bits. The device features double-buffered interface logic for simultaneous updates of DAC.
- Relative accuracy - 1LSB maximum
- Low zero and gain errors
- Settling time: 6µs
- Configurable gain - x2/x4
- Analog output monitor
- Power-down mode
- Daisy-chain mode
- Green product and no Sb/Br
DAC8734SPFB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TQFP-48 |
| Number of Outputs | 4 Output |
| Supply Current | 4 mA |
| Number of Channels | 4 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 290 mW |
| Sample Rate | 125 µHz |
| Power Consumption | 280 mW |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 290 mW |
| Number of DACs | 4 DAC |
| Supply Voltage | 4.75V ~ 24V |
| Show | |
| Size-Length | 7.2 mm |
| Size-Width | 7.2 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2014/12/17 |
