AD8612ARUZ ADI - Comparator, Analog Comparator IC

Image is for your reference only,please check specifications for details

AD8612ARUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC637535
Category:
Comparator, Analog Comparator IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8612ARUZ Аналоговый компаратор, двойной, высокоскоростной, 2, 4нс, 4.5В-5.5В, 2.7В-6В, TSSOP, 14 выводов
Stock Locations:
Availability:
120 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.06

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

AD8612ARUZ — это сверхбыстрый компаратор с одним источником питания, функцией фиксации и дополнительным выходом. Фиксация не работает, если VCC меньше 4,3 В. Быстрая задержка распространения в 4 нс делает AD8612 хорошим выбором для схем синхронизации и линейных приемников. Задержки распространения для нарастающих и спадающих сигналов точно согласованы и отслеживаются при изменении температуры. Эта согласованная задержка делает AD8612 хорошим выбором для восстановления тактовой частоты, поскольку рабочий цикл выхода соответствует рабочему циклу входа. AD8612 имеет такой же цоколев, как LT1016 и LT1394, при меньшем токе потребления и более широком диапазоне синфазного входного напряжения, включающем отрицательную шину питания.
Вход 100 МГц
Функция фиксации
Задержка распространения 4 нс при 5 В

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount

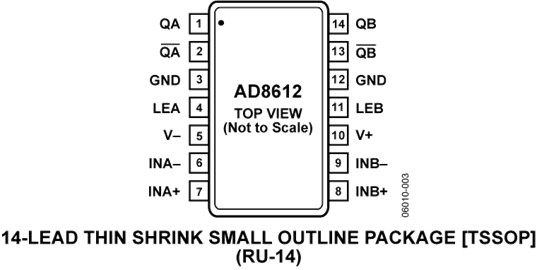

Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Current	10 mA
Number of Channels	2 Channel
Number of Positions	14 Position
Power Dissipation	100 mW
Common Mode Rejection Ratio	85 dB
Quiescent Current	2.20 mA
Input Offset Voltage	7 mV
Input Bias Current	4000 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
