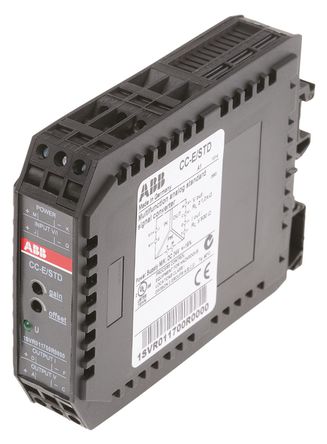

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 1SVR011700R0000 is an universal standard Analog Signal Converter from the CC-E range. The CC-E product range offers devices for the conversion of standard signals, temperature signals for RTD sensors, thermocouple signals and converters for current measurement. This converter, with 3-way electrical isolation operates with a rated control supply voltage of 24VDC. The 4 input signal ranges (0-5V, 0-10V, 0-20mA, 4-0mA) and the 4 output signal ranges (0-5V, 0-0V, 0-20mA, 4-20mA) can be configured by means of directly accessible lateral DIP switches. The adjustment of the gain and the offset is made via potentiometers on the front of the unit. Applied supply voltage is displayed by a green LED.
- Universally configurable and single-function devices
- Safety by 3-way electrical isolation
- Clear and comprehensive terminal marking
1SVR011700R0000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Supply Voltage (DC) | 24.0 V |
| Number of Channels | 1 Channel |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | 0.5 % |
| Number of Output Channels | 1 Channel |
| Supply Voltage | 24 VDC |
| Show | |
| Operating Temperature | -20℃ ~ 80℃ |
| RoHS | RoHS Compliant |
