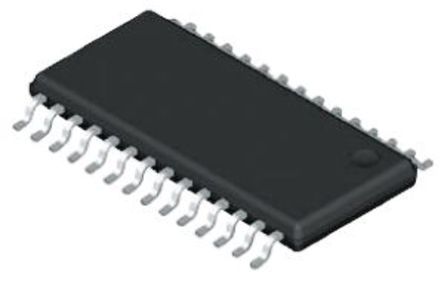

AD9200ARSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC229625
Category:
Analog to Digital, ADC IC
Package:
SSOP-28
Datasheet:
Datasheet 3D Model
Description:
Analogue to Digital Converter, 10Bit, 20MSPS, Single, 2.7V, 5.5V, SSOP
Stock Locations:
Availability:
2,971 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.64

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9200ARSZ is a 10-bit complete CMOS monolithic Analog-to-digital Converter (ADC) with an on-chip sample-and-hold amplifier and voltage reference. The converter uses multistage differential pipeline architecture at 20MSPS data rates and guarantees no missing codes over the full operating temperature range. The input of the converter has been designed to ease the development of both imaging and communications systems. The user can select a variety of input ranges and offsets and can drive the input either single-ended or differentially. The sample-and-hold (SHA) amplifier is equally suited for both multiplexed systems that switch full-scale voltage levels in successive channels and sampling 1-channel inputs at frequencies up to and beyond the Nyquist rate. AC coupled input signals can be shifted to a predetermined level with an on board clamp circuit.
Dynamic performance is excellent
Pin-compatible with AD876
Power-down (sleep) mode
Out-of-range indicator
Built-in clamp function
Adjustable on-chip voltage reference

Show

AD9200ARSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Supply Voltage (DC)	2.70V (min)
Supply Current	26.6 mA
Number of Circuits	1 Circuit
Number of Positions	28 Position
Number of Bits	10 Bit
Power Dissipation	80 mW
Sample Rate	20 Msps
Resolution (Bits)	10.0 Bit
Input Capacitance	1.00 pF
Input Impedance	1.00 Ω
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	100 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2014/06/16
