Description
- Product Details
- The AD974 is a 4-channel, 200 ksps, low power 16-bit A/D converter that operates from a single 5 V supply. It contains a four-channel input multiplexer, a successive-approximation switched-capacitor ADC, an internal 2.5 V reference, and a high-speed serial interface. The AD974 dissipates a maximum of 120 mW, and has a powerdown mode. The ADC is factory calibrated to minimize all linearity errors. The AD974 is specified for full-scale bipolar input ranges of ±10 V, 0 V to 5 V and 0 V to 4 V.
- The AD974 is comprehensively tested for ac parameters such as SNR and THD, as well as the more traditional dc parameters of offset, gain and linearity.
- The AD974 is available in skinny 28-pin DIP, SOIC, and SSOP packages.
- ### Features and Benefits
- Fast 16-Bit ADC with 200 kSPS Throughput
- Four Single-Ended Analog Input Channels
- Single +5 V Supply Operation
- Input Ranges:
- 0 V to +4 V, 0 V to +5 V and 610 V
- 120 mW Max Power Dissipation
- Power-Down Mode 50 µW
- Choice of External or
- Internal 2.5 V Reference
- On-Chip Clock
- Power-Down Mode
AD974BRS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |

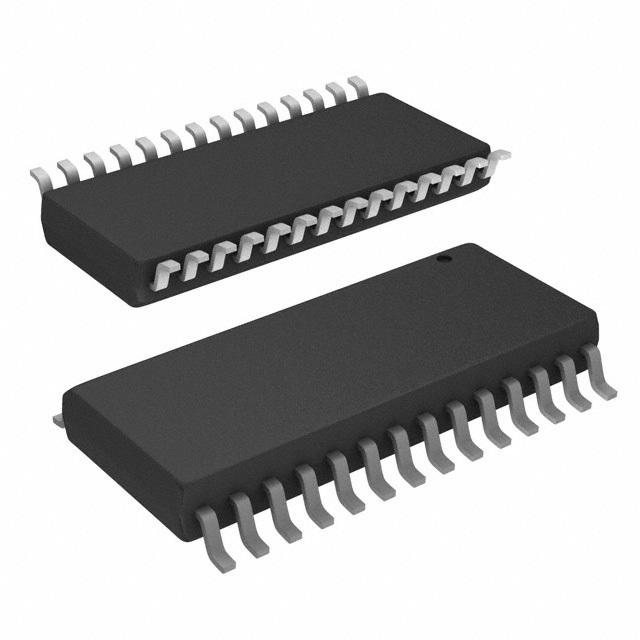

| Case/Package | SSOP-28 |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 120 W |
| Sample Rate | 200 ksps |
| Power Consumption | 0.05 mW |
| Resolution (Bits) | 16.0 Bit |
| Input Capacitance | 40.0 pF |
| Input Impedance | 13.7 kΩ |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 120 mW |
| Number of Input Channels | 4 Channel |
| Supply Voltage | 4.75V ~ 5.25V |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.75 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
