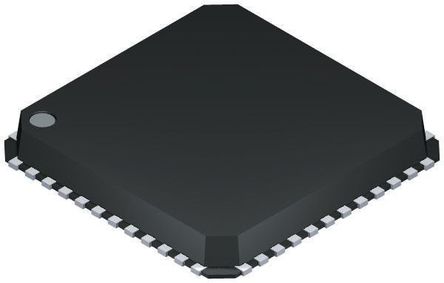

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD9824 is a complete analog signal processor for CCD applications. It features a 30 MHz single-channel architecture designed to sample and condition the outputs of interlaced and progressive scan area CCD arrays. The AD9824’s signal chain consists of an input clamp, a correlated double sampler (CDS), _PxGA_, a digitally controlled VGA, a black level clamp, and a 14-bit A/D converter. Additional input modes are also pro-vided for processing analog video signals.
The internal registers are programmed through a 3-wire serial digital interface. Programmable features include gain adjustment, black level adjustment, input configuration, and power-down modes.
The AD9824 operates from a single 3 V power supply, typically dissipates 153 mW, and is packaged in a 48-lead LFCSP.
### Features and Benefits
14-Bit 30 MSPS A/D Converter
30 MSPS Correlated Double Sampler (CDS)
4 dB 6 dB 6-Bit Pixel Gain Amplifier (PxGA®)
2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA)
Low Noise Clamp Circuits
Analog Preblanking Function
|
Auxiliary Inputs with VGA and Input Clamp
3-Wire Serial Digital Interface
3 V Single-Supply Operation
Low Power:153 mW @3 V Supply
Space-Saving 48-Lead LFCSP Package
---|---

Show

AD9824KCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LFCSP-48
Supply Voltage (DC)	2.70V (min)
Supply Current	51.0 mA
Number of Channels	1 Channel
Power Dissipation	153 mW
Sample Rate	30000 KSPS
Resolution (Bits)	14.0 Bit
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Power Dissipation (Max)	153 mW
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
Input Voltage	3 V
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	0.83 mm
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
