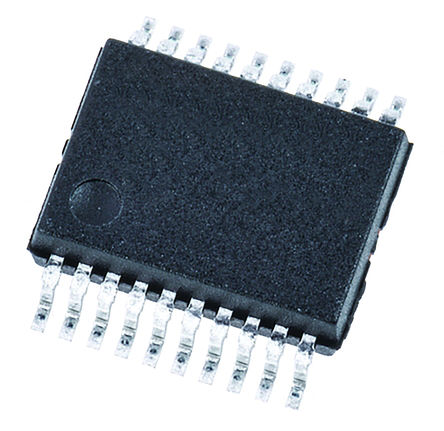

AD9832BRUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC78134
Category:
Digital to Analog, DAC IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
Special Function IC, Direct Digital Synthesizer, 25MHz, 10Bit DAC, 2.97V to 5.5V, TSSOP-16
Stock Locations:
Availability:
1,505 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.64

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9832BRUZ is a 25MHz Direct Digital Synthesizer Waveform Generator employing a phase accumulator, a sine look-up table and a 10-bit digital-to-analogue converter (DAC) integrated on a single CMOS chip. Modulation capabilities are provided for phase modulation and frequency modulation. Clock rates up to 25MHz are supported. Frequency accuracy can be controlled to one part in 4 billion. Modulation is effected by loading registers through the serial interface. A power-down bit allows the user to power down the AD9832 when it is not in use, the power consumption being reduced to 5mW (5V) or 3mW (3V).
25MHz Speed
On-chip SIN lookup table
On-chip, 10-bit DAC
Serial loading
200mW Power consumption
ESD sensitive device, take proper precaution while handling the device.

Show

AD9832BRUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	2.97V (min)
Operating Voltage	2.97V ~ 5.5V
Number of Outputs	1 Output
Output Current	4 mA
Supply Current	15 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	10 Bit
Power Dissipation	120 mW
Resolution (Bits)	10.0 Bit
Bandwidth	2 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
Supply Voltage	2.97V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.97 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
HK STC License	NLR
